Adastra Cf-5d Fire Dome En54 Ceiling Spkr 5.25in 6w
£35.46
In stock
Only 75 left
SKU
952.205UK
Fire Dome EN54 Ceiling Spkr 5.25in 6W 952.205UK by adastra
Adastra Cf-5d - Fire Dome En54 Ceiling Spkr 5.25in 6w

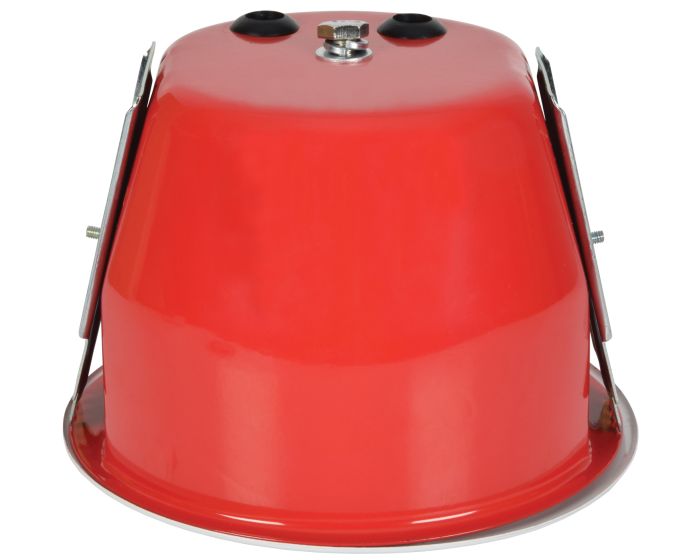

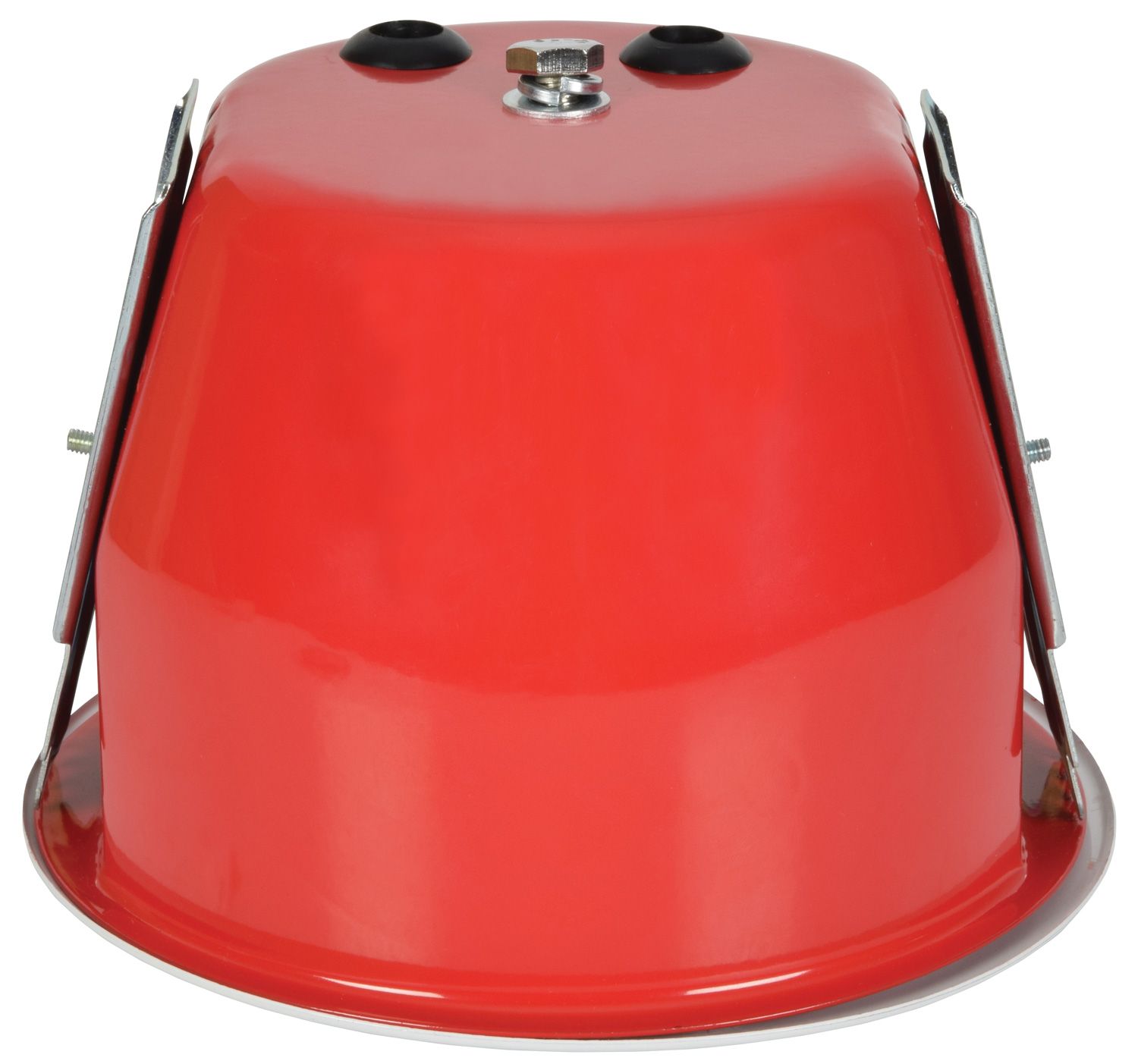

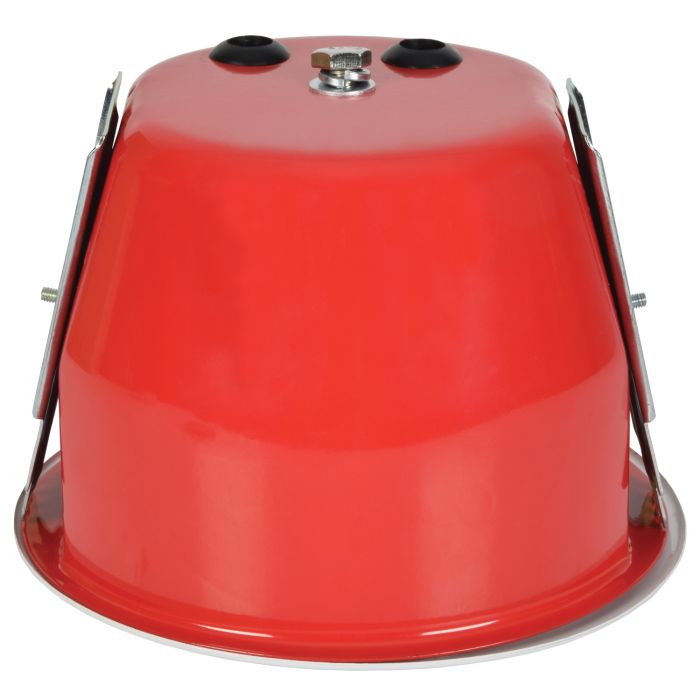

100V ceiling speakers with a rear dome housing to provide an effective barrier against fire. The dome can be removed from the speaker unit for convenient installation into a ceiling cavity with spring loaded wire fitting for the speaker unit to pull into the dome for a neat flush fit. Screw terminals on the speaker unit offer 4 volume tappings at 100V. Certified to EN54 standard for compliance with fire detection and alarm systems requirements.
Features
- EN54-24 certified
- Supplied with flush mount fire dome
- All metal frame and basket
- Spring loaded speaker retainers
- 4 x 100V volume tappings
- Fire-resistant cable to 95 DegC
- Ceramic screw terminals
Technical Specifications
- 100V line tappings : 0.75W, 1.5W, 3W, 6W
- Fire rating : EN54-24
- SPL @ 1W/1m : 92dB
- Frame material : Steel (powder coated)
- Dimensions : 120 x 180mmDia
- Weight : 1.23kg
- Frequency response : 130Hz - 15kHz
- Cutout : 160mmDia
- Driver : 135mmDia (5.25") reinforced paper cone
Brand | Adastra |
---|---|
Barcode | 5015972213018 |
Manfacturer Code | CF-5D |
