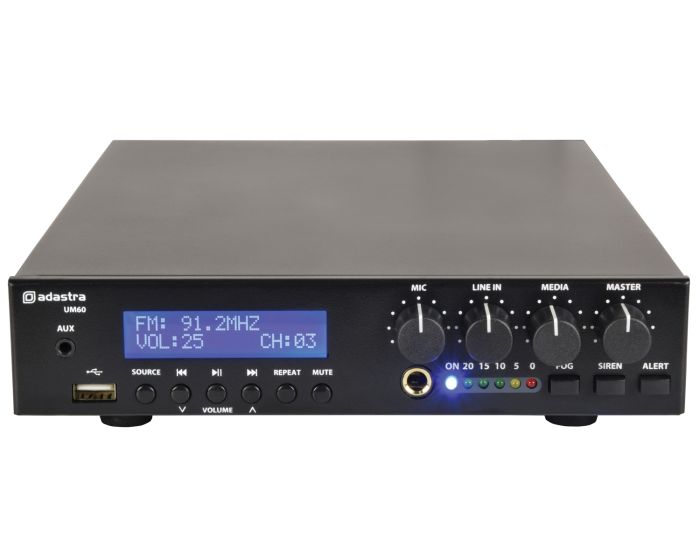

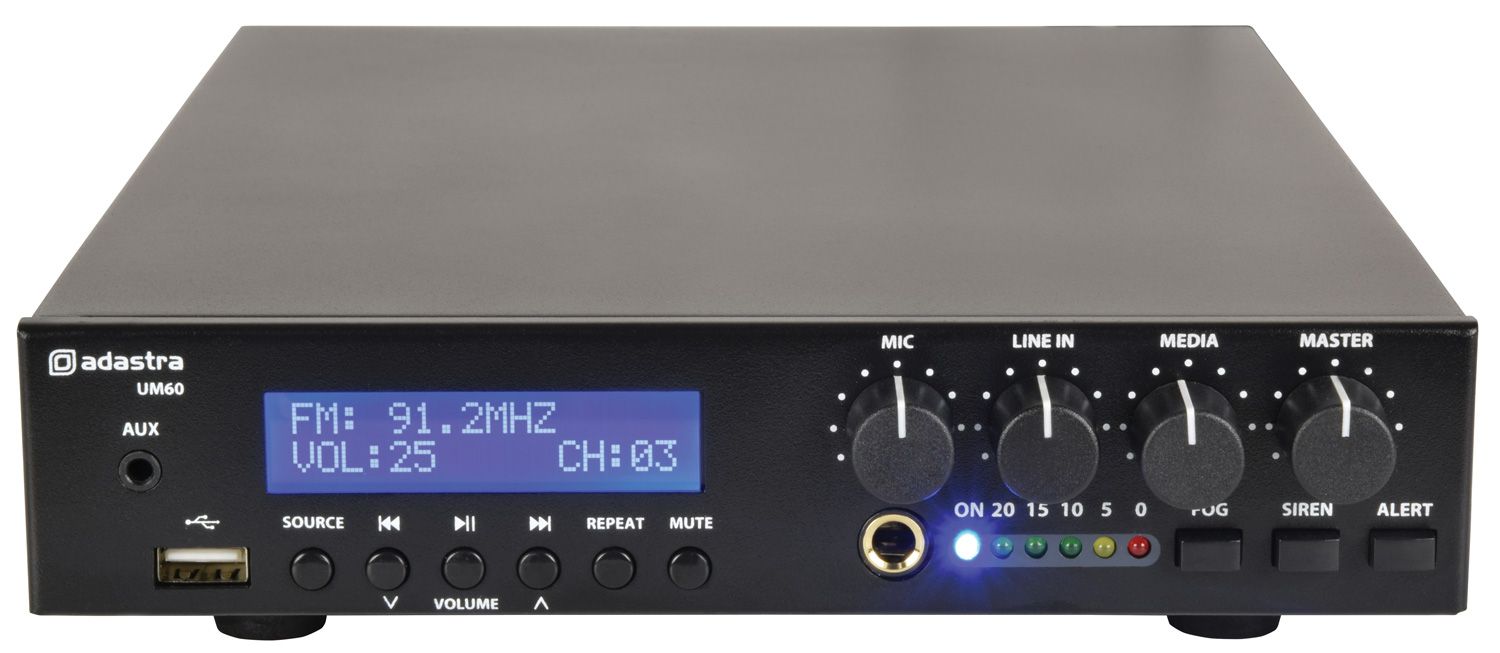

Adastra Um60 60w Compact 100v Mixer Amplifier Background Music Amp
£154.66
In stock
Only 50 left
SKU
953.176UK
UM60 Compact 100V Mixer-Amp 953.176UK by adastra
Adastra Um60 - Um60 Compact 100v Mixer-amp
100V mixer-amplifiers with USB audio player, FM tuner and BT wireless receiver in an ultra compact housing. Microphone input, line input and USB/FM/BT sections are governed by front panel volume controls and a master volume. Mono output to either 100V line or 8 Ohms speaker load is connected via screw terminals on the rear panel. Supplied with hardware for mounting 2 units side by side in a 1U 19" rack space. Designed as a versatile solution for small to medium PA installations.
Features
- Ultra compact form factor
- Efficient class D amplifier design
- Internal USB/FM/BT audio player
- 100V line or 8 Ohms operation
- Bluetooth with programmable ID
Technical Specifications
- Power supply : 170-264Vac, 50Hz (IEC) or 24Vdc
- Amplifier : construction : Class D + transformer output
- Audio source : Internal USB/FM/BT player
- Inputs : 1 x mic (6.3mm), 1 x line (2 x RCA), 1 x aux (3.5mm)
- Line output : 2 x RCA (mono)
- Speaker outputs : Screw terminals - 100V / 8 Ohms / Com
- DC power : 24Vdc screw terminals
- Mute : 24V relay contacts
- THD : <0.4% @ 1kHz
- Input impedance : 1k Ohms (mic/line)
- Input sensitivity : -10dB (line), -45dB (mic)
- SNR : 80dB (line), 75dB (mic)
- Frequency response : 100Hz - 18kHz
- Output power : rms : 60W
- Alarm output : Fog, siren & alert generator
- Weight : 2.47kg
- Dimensions : 269 x 210 x 44mm
Brand | Adastra |
---|---|
Barcode | 5015972213230 |
Manfacturer Code | UM60 |
