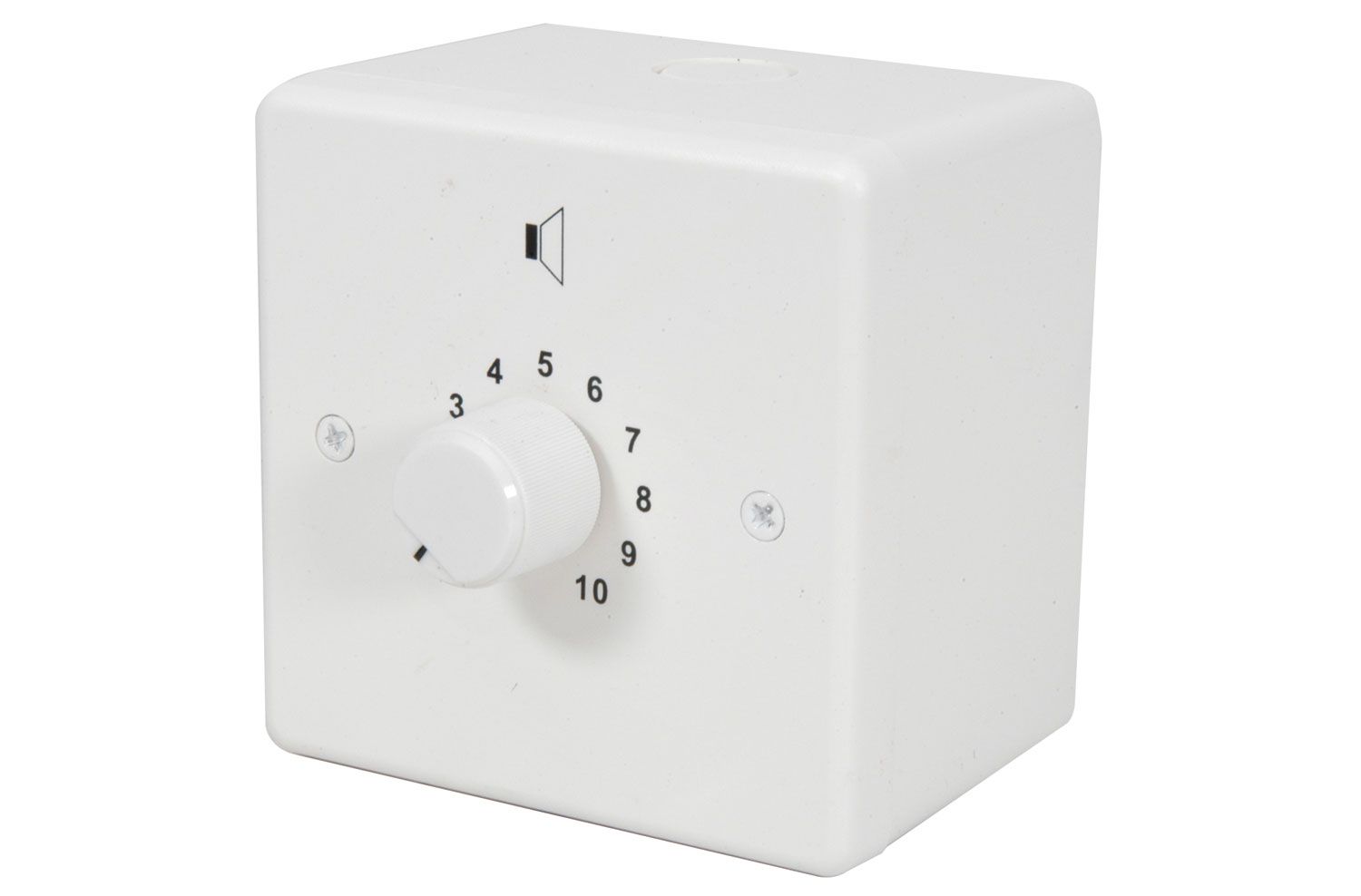

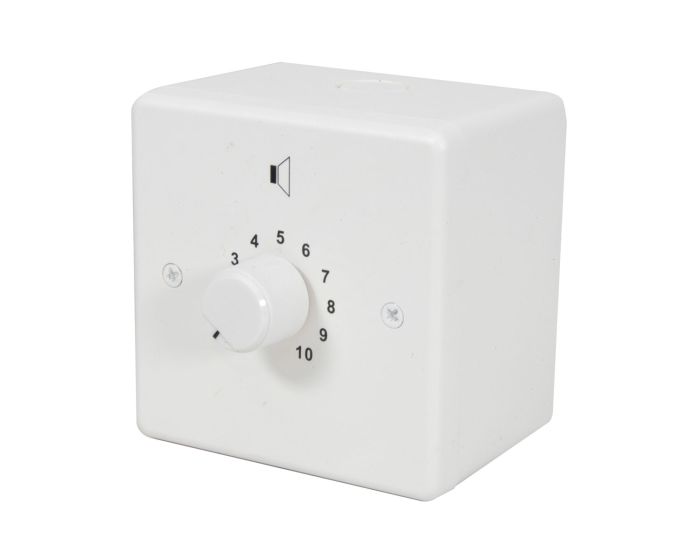

Adastra V50-vr 100v Volume Control Relay Fitted 50w

Adastra V50-vr - 100v Volume Control, Relay Fitted, 50w

These high quality attenuators supplied complete with plastic surface mount back box. The stylish ABS faceplate is fitted with a matching plastic knob. Each attenuator is fitted with a 24V relay to enable bypass to full volume when triggered from a fire alarm panel.

Features

• Attenuation in 10 steps: 8 x 3dB and 2 x 6dB steps
• 24V relay fitted for remote attenuator bypass

Technical Specifications

• Attenuation : 3dB per graduation
• Frequency response : 35Hz - 20kHz
• Relay : 24V, 50mA
• Dimensions (assembled) : 85 x 85 x 75mm (inc. back box)
• Mounting depth : 47mm
• Power : 50W
• Weight : 234g
