Chord Di-a1 Active Direct Injection Box
£18.00
Out of stock
SKU
173.293UK
Active Direct Injection Box 173.293UK by chord

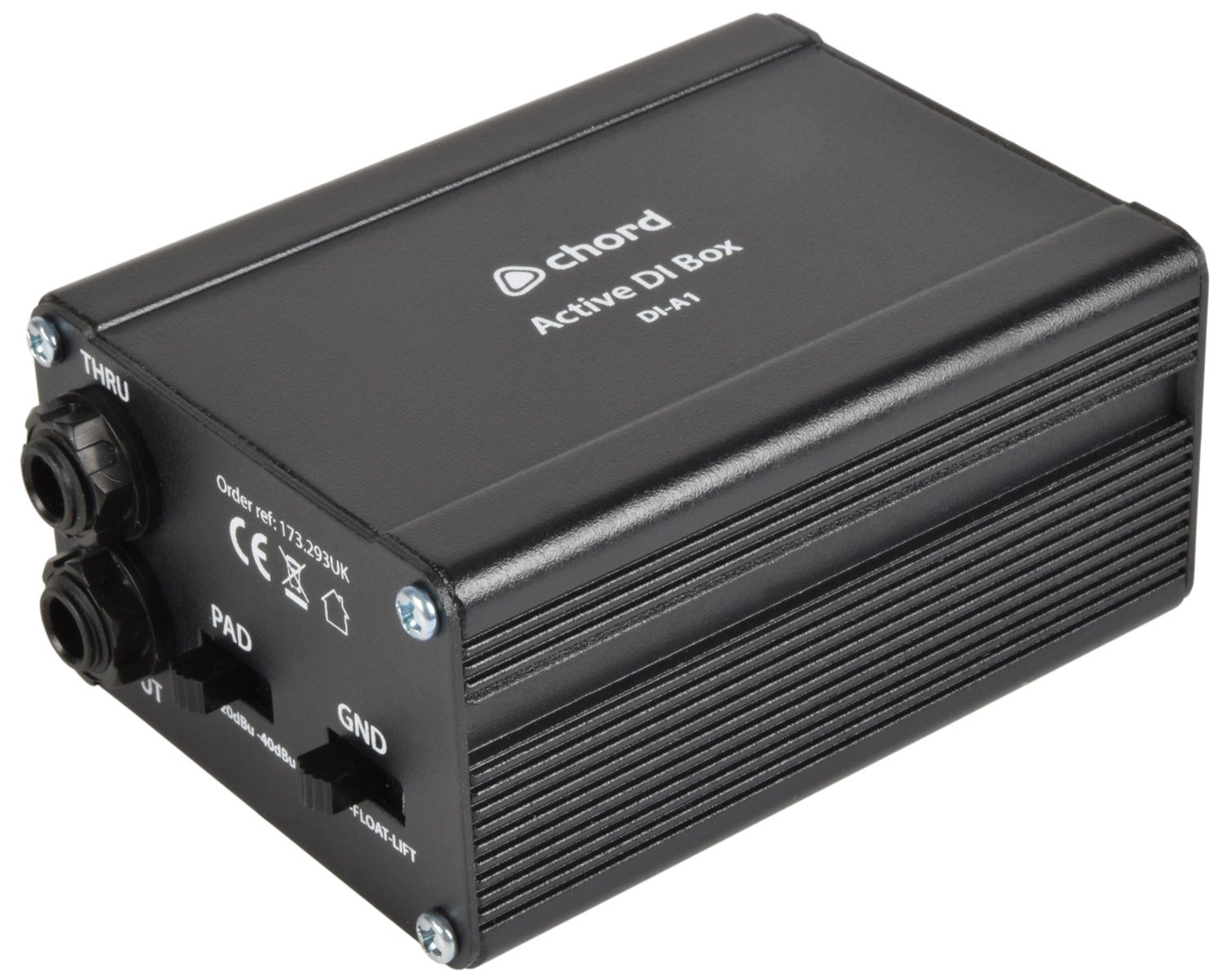

Chord Di-a1 - Active Direct Injection Box
Active DI box for converting high impedance instrument outputs to low impedance line signals for feeding directly into a mixing console. Internal buffer amplifier to boost the signal, avoiding losses in long cable runs and 3-way pad switch for level matching. Ground-Float-Lift selector enables signal ground isolation with or without RF/mains filtering.
Features
- Powered by 9-52V phantom power, optional 9V battery or 12Vdc adaptor
- Ground float option for ground lift with RF/mains filter
- Ground lift option isolates signal ground without filter
- 3 pad settings for level matching
Technical Specifications
- Dimensions : 103 x 70 x 45mm
- Weight : 243g
- Input : 6.3mm jack (unbalanced)
- Outputs : XLRM (balanced), 6.3mm jack through (unbalanced)
- Input impedance : >100k Ohms
- Output impedance : 600 Ohms
- Controls : 0/-20/-40dBu pad & Ground-Float-Lift switch
- Power supply : 9V battery (PP3 not supplied), 12Vdc adaptor (optional) or 9-52V phantom power
Brand | Chord |
---|---|
Barcode | 5015972209370 |
Manfacturer Code | DI-A1 |
