Chord Nu4-c Quad Uhf System - Combo

Chord Nu4-c - Nu4-c Quad Uhf System - Combo

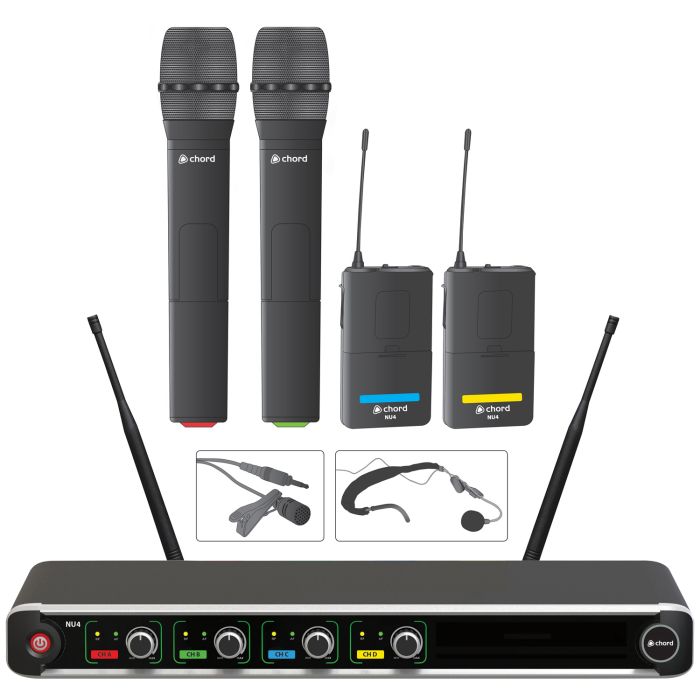

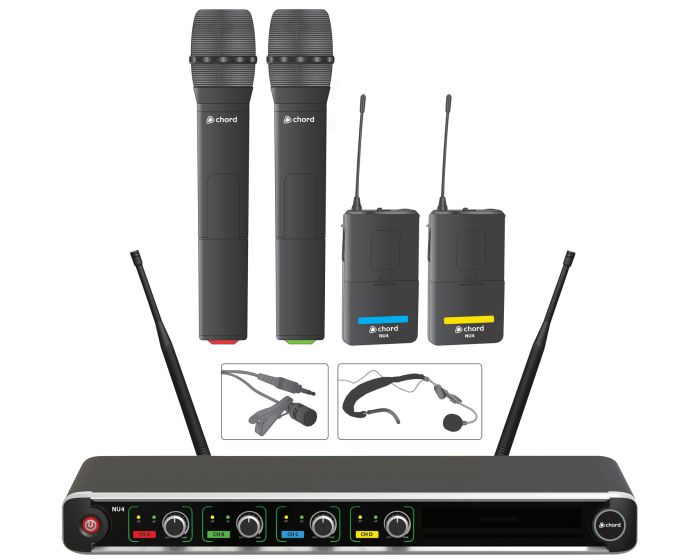

UHF wireless system with 4 independent channels. The receiver is 19" rack-mountable and features 4 separate XLR outputs or a mixed jack output. Available in sets with 4 handheld or 4 beltpack transmitters (with a choice of neckband or lavalier microphone for each beltpack) or a combo set with 2 of each. Can be used for vocal groups, theatres and presentations.

Features

• Individual or mixed outputs
• 4 licence-free UHF frequencies with pilot tone
• Supplied with 4 colour coded transmitters
• 19" rack-mountable (1U)

Technical Specifications

• Dimensions : receiver : 482 x 225 x 44mm (inc. rack ears)
• Weight : receiver : 3.0kg
• Power supply : 12-18Vdc 500mA adaptor (supplied)
• Batteries : 8 x AA (included)
• Carrier frequencies : Red 864.8 ,Green 864.3, Blue 863.42, Yellow 863.1 (all in MHz)
• Wireless range : Up to 60m
• Dimensions : handheld transmitter : 243 x 48mmDia
• Weight : handheld transmitter : 238g (no battery)
• Dimensions : beltpack transmitter : 205 x 68 x 25mm
• Weight : beltpack transmitter : 76g (no battery)
• Dimensions : neckband microphone : 180 x 140 x 60mm
• Weight : neckband microphone : 20g
• Dimensions : lavalier microphone : 27 x 12mmDia
• Weight : lavalier microphone : 20g
