Citronic Csl-8 Mixing Console 8 Input

More Views

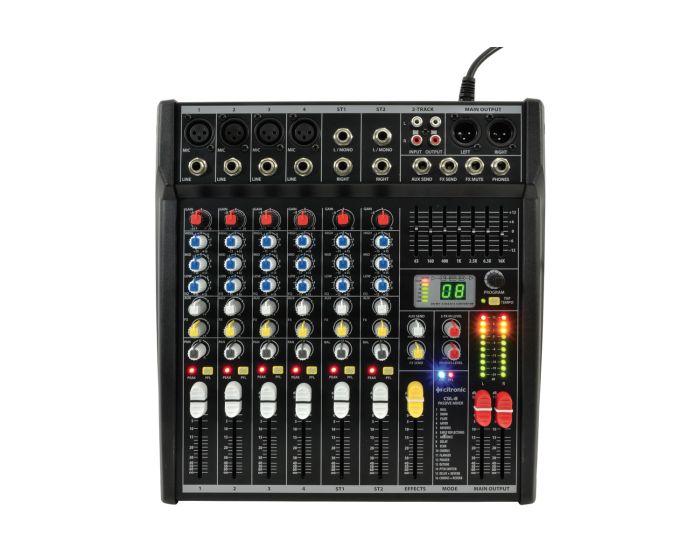

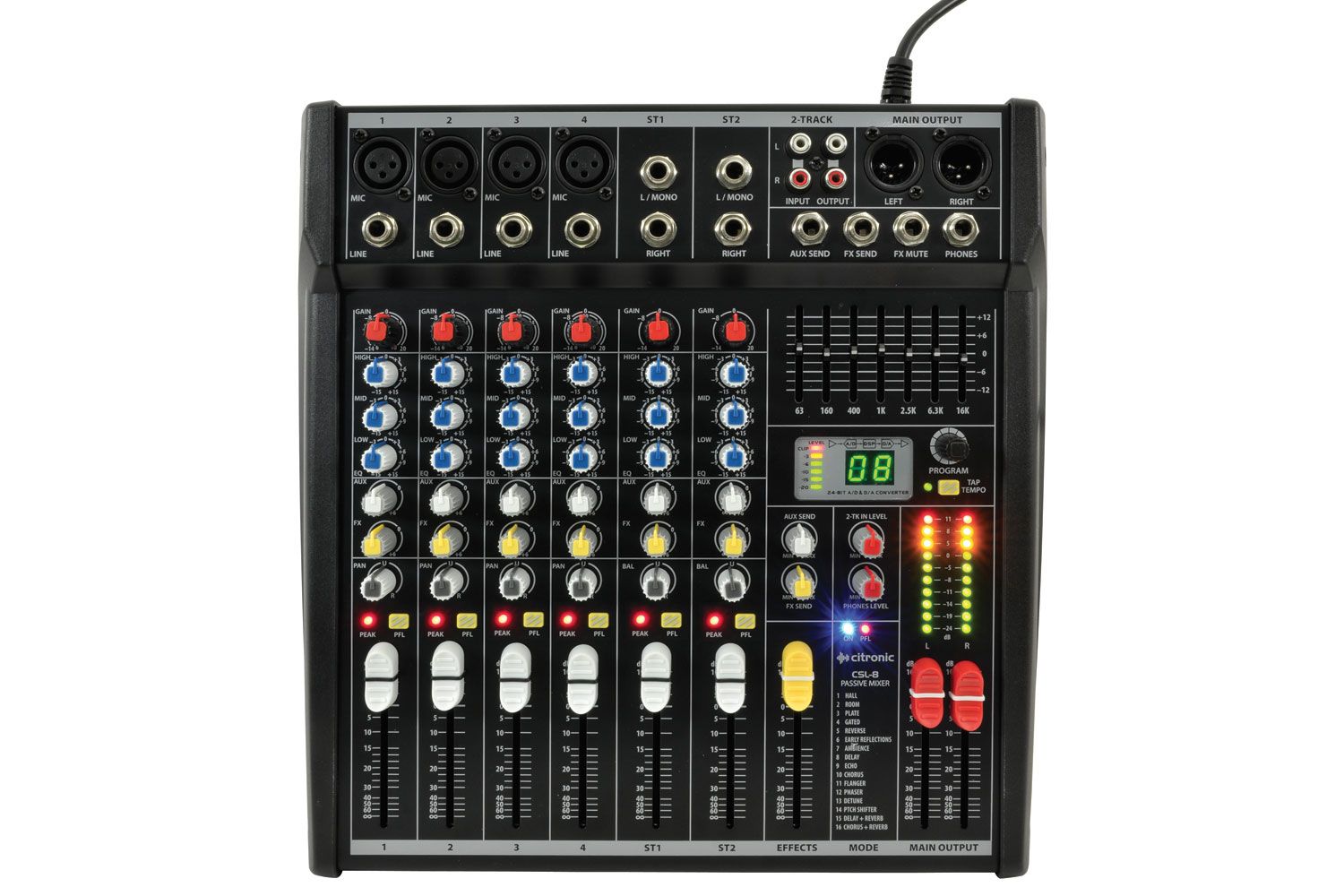

Citronic Csl-8 Mixing Console 8 Input
Excl. Vat: £128.70 Incl. Vat: £154.44

Availability: In stock

CSL-8 Mixing Console 8 input 170.851UK by citronic

Description

Details

Citronic Csl-8 - Csl-8 Mixing Console 8 Input

Compact mixing consoles with balanced mic/line inputs and 2 stereo inputs, each with 3-band EQ and aux send. A 16 program DSP section with tap tempo can provide vocal effects and a 7-band graphic EQ facilitates global tone control. Designed primarily for venues and stage applications, these models offer a compact and comprehensive solution for mobile PA, bars and special events.

Features

24-bit 16 program DSP effects
48V phantom power for XLR inputs
3-band EQ per channel
7-band global graphic EQ
IEC mains powered
Balanced main outputs

Technical Specifications

Power supply : 230Vac, 50Hz (IEC)
Phantom power : +48V (XLR inputs)
Power consumption : 25W
Fuse : T1AL
Input level : +24dBu
Output level : line : +26dBu
Frequency response : 20Hz-30kHz (0.5dB)
CMRR : >74dB (mic 1kHz)
THD +N : <0.01% (channel to main out)
Crosstalk : >85dB (fader mute), >82dB (channel)
Noise rms : 22Hz-22kHz : -122dBu (EIN), -82dBu (mix)
EQ: high : 12kHz +/-15dB shelving
EQ: mid : 2.5kHz +/-15dB band pass
EQ: low : 80Hz +/-15dB shelving
Input impedance : mic (balanced) : 2k Ohms
Input impedance : line (balanced) : 10k Ohms
Sensitivity : mic : -60 to +14dBu
Sensitivity : line : -40 to +14dBu
2-track : 2 x RCA in & out (-2dBu)
Effects : 16 program DSP (24-bit sigma-delta, 40kHz)
Output impedance : <75 Ohms
Headphone output : 6.3mm jack, 30-600 Ohms
Inputs : mic/line : 4 x balanced XLRF/TRS jack
Dimensions : 310 x 320 x 107mm
Weight : 3.0kg

Additional Information

Additional Information

SKU 170.851UK
Barcode 5015972196205
Manufacturer Citronic
Manfacturer Code CSL-8
Series N/A
