Citronic Csm-4 Mixer With Usb / Bluetooth Player

More Views

Citronic Csm-4 Mixer With Usb / Bluetooth Player
Excl. Vat: £45.14 Incl. Vat: £54.17

Availability: In stock

CSM-4 Mixer with USB / Bluetooth Player 170.871UK by citronic



Citronic Csm-4 - Csm-4 Mixer With Usb / Bluetooth Player

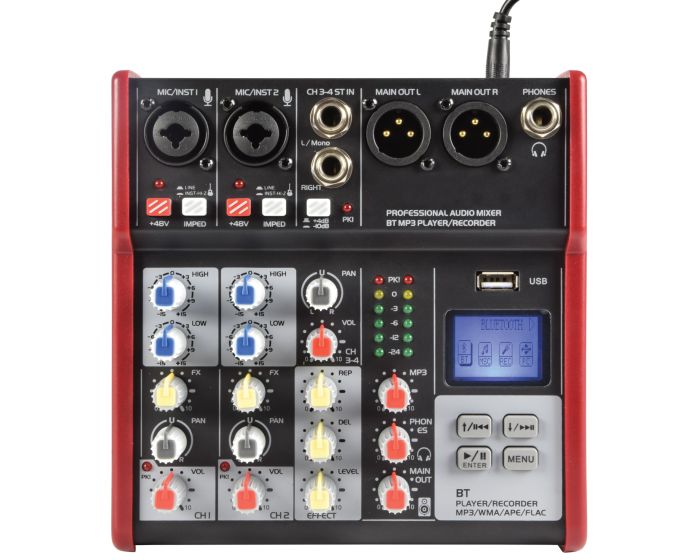

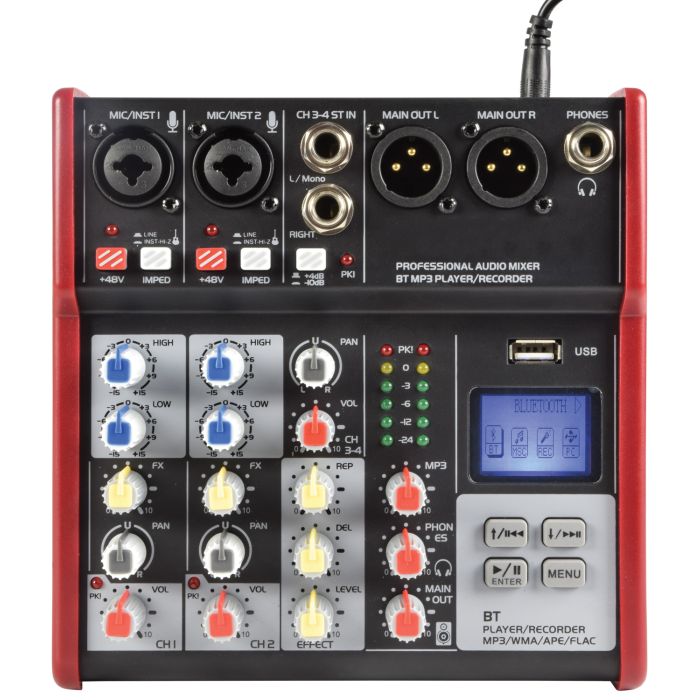

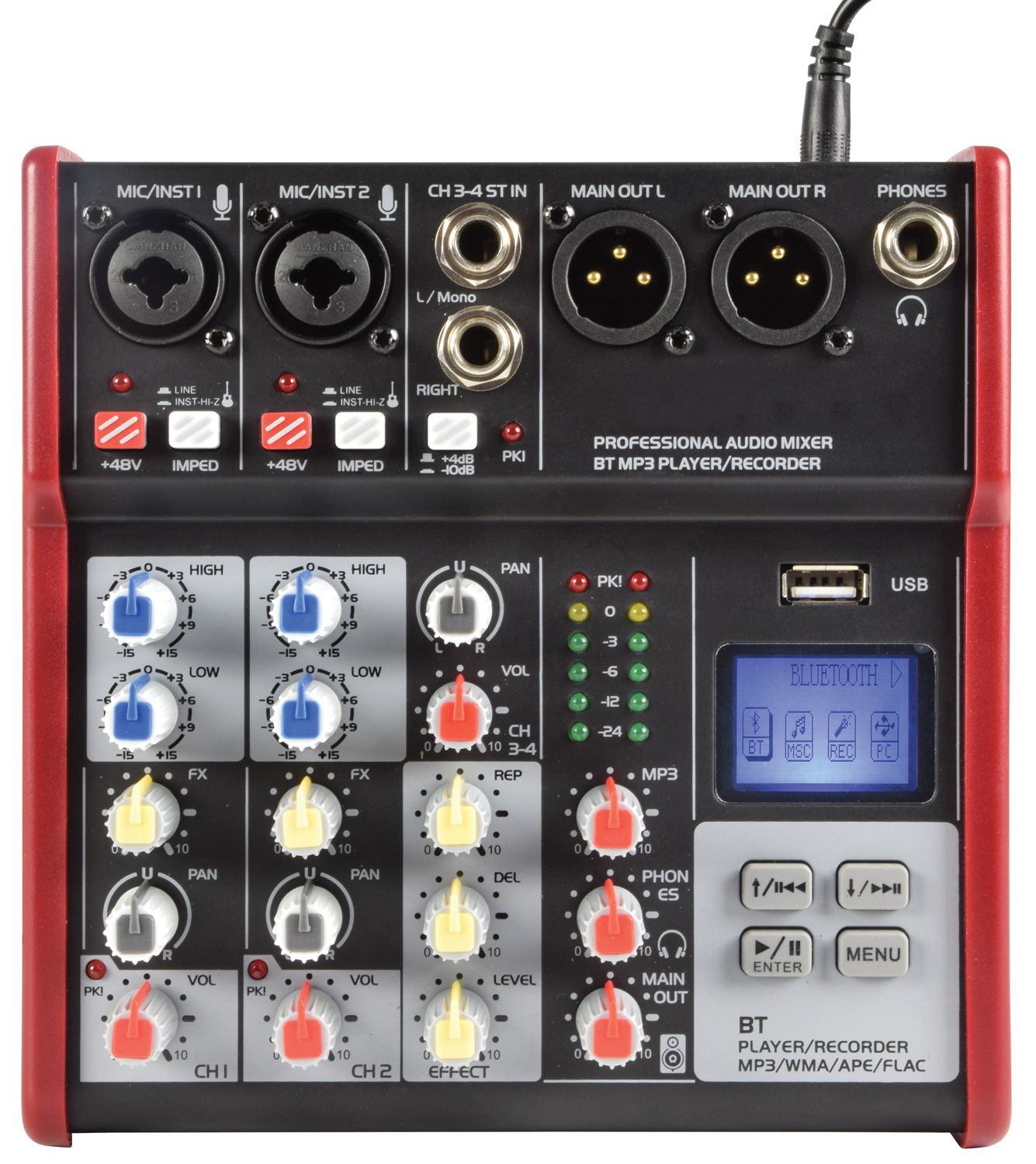

Compact format audio mixer with 2, 4 or 6 mono input channels and a stereo line input. Each mono channel has a combo XLR/jack input with individually switchable mic/instrument impedance and +48V phantom power for the XLR. Input channels have High/Low EQ and Pan controls and mono channels also have Effects level to vary the amount of internal digital delay effect added for vocals or instruments. An internal player/recorder with backlit display can accept a USB memory stick containing compressed audio files in various formats or alternatively connect to a smart phone via BT wireless link. Output is delivered on a pair of balanced XLR connectors and offers very low noise operation for high quality studio or live performances.


Integral USB multi-format audio player
BT wireless connectivity
Supplied with DC power adaptor
Built in record function
Digital delay effect for vocals or instruments
Individually switchable +48V phantom power

Technical Specifications

Power supply : 5Vdc 1A (adaptor included)
Output : Left + Right balanced XLR
Phantom power : +48V individually switchable (XLR inputs only)
Audio format : USB playback mp3, wma, ape, flac / record mp3 (48kHz 128kB/s)
Bluetooth version : 2.1 + EDR
Power consumption max. : 5W
Max. output level : 3Vrms
Dynamic range : 102dB
Frequency response : 20Hz - 20kHz (+/-0.5B)
THD +N : <0.03% @ 1kHz
Crosstalk : stereo : 92dB
Gain : -14 to +40dB
EQ: low : +/-15dB @ 80Hz
EQ: high : +/-15dB @ 12kHz
Audio source : Internal USB player/recorder & BT receiver
Input impedance : mic : 2k Ohms
Input impedance : instrument : 1M Ohms
Input impedance : line : 20k Ohms
Output impedance : 120 Ohms
Dimensions : 166 x 165 x 66mm
Inputs : 2 x combo XLR/jack + stereo jack
Weight : 0.89kg

Additional Information

Additional Information

SKU 170.871UK
Barcode 5015972207093
Manufacturer Citronic
Manfacturer Code CSM-4
