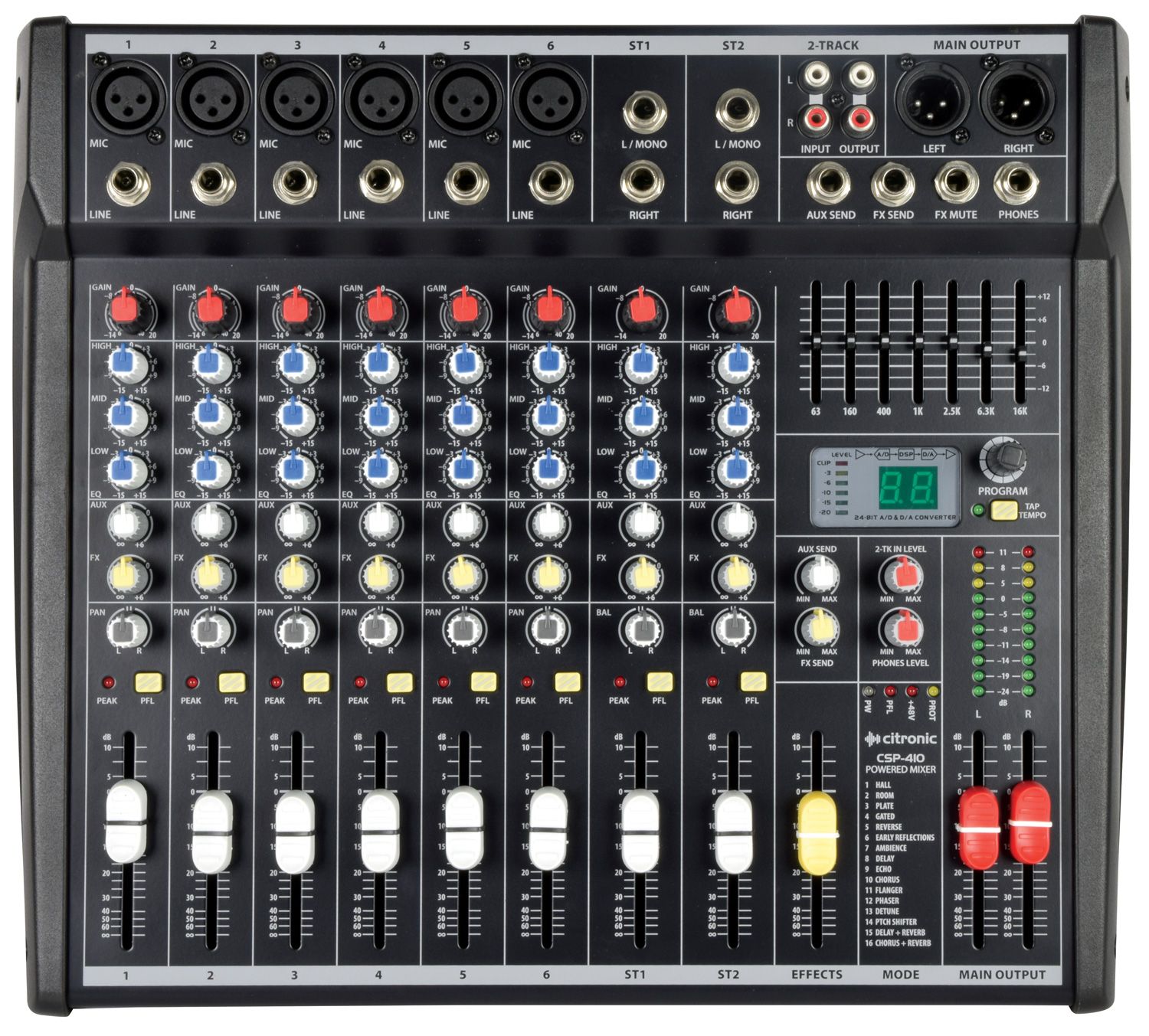

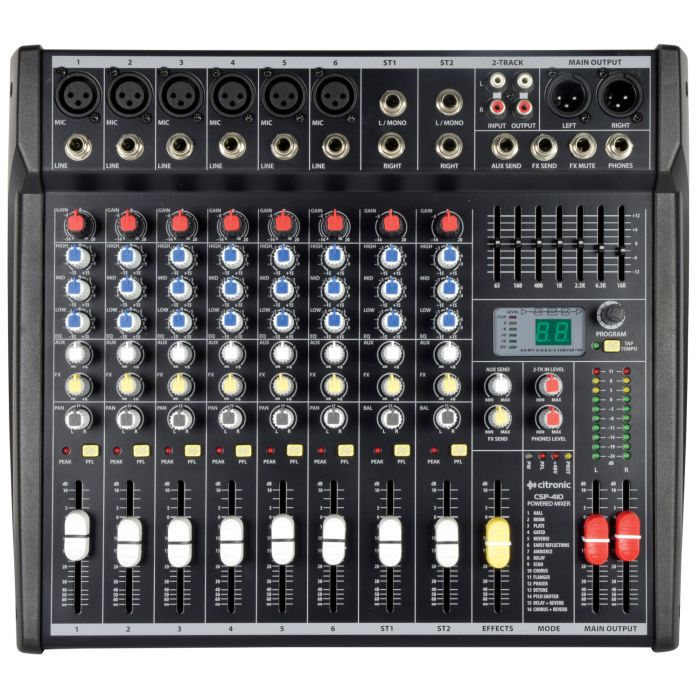

Citronic Csp-410 Powered Mixer 400w

Citronic Csp-410 - Csp-410 Powered Mixer 400w

Powered mixer with balanced mic/line inputs and 2 stereo inputs, each with 3-band EQ and aux send. A 16 program DSP section with tap tempo can provide vocal effects and a 7-band graphic EQ facilitates global tone control. The built-in stereo amplifier delivers ample power to drive 2 or 4 speakers for coverage in medium sized venues, offering a compact and comprehensive solution for mobile PA, bars and special events.

Features

• 24-bit 16 program DSP effects
• 48V phantom power for XLR inputs
• 3-band EQ per channel
• 7-band global graphic EQ
• Balanced main outputs
• Internal stereo power amplifier

Technical Specifications

• Power supply : 230Vac 50Hz (IEC)
• Input level : +24dBu
• Output level : line : +26dBu
• Frequency response : 20Hz-30kHz (0.5dB)
• CMRR : >74dB (mic 1kHz)
• THD +N : <0.01% (channel to main out)
• Crosstalk : >85dB (fader mute), >82dB (channel)
• Noise rms : 22Hz-22kHz : -122dBu (EIN), -82dBu (mix)
• EQ: high : 12kHz +/-15dB shelving
• EQ: mid : 2.5kHz +/-15dB band pass
• EQ: low : 80Hz +/-15dB shelving
• Input impedance : mic (balanced) : 2k Ohms
• Input impedance : line (balanced) : 10k Ohms
• Sensitivity : mic : -60 to +14dBu
• Sensitivity : line : -40 to +14dBu
• 2-track : 2 x RCA in & out (-2dBu)
• Effects : 16 program DSP (24-bit sigma-delta, 40khz)
• Output impedance : <75 Ohms
• Headphone output : 6.3mm jack, 30-600 Ohms
• Speaker : outputs : L+R SPK connectors
• Phantom power : +48V (XLR inputs)
• Power consumption : 600W
• Fuse : T10A (5 x 20mm, 250V)
• Output power @ 4 Ohms : 2 x 200Wrms
• Output power : 8 Ohms : 2 x 130Wrms
• Inputs : mic/line : 6 x balanced XLRF/TRS jack
• Dimensions : 369 x 322 x 153mm
• Weight : 7.35kg
