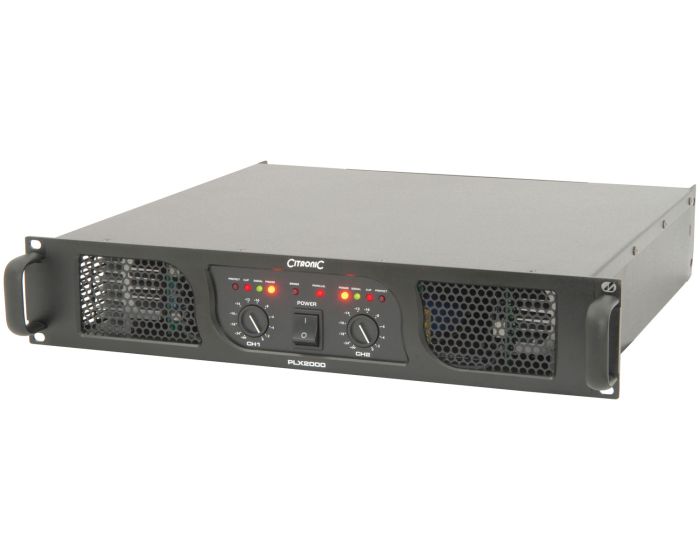

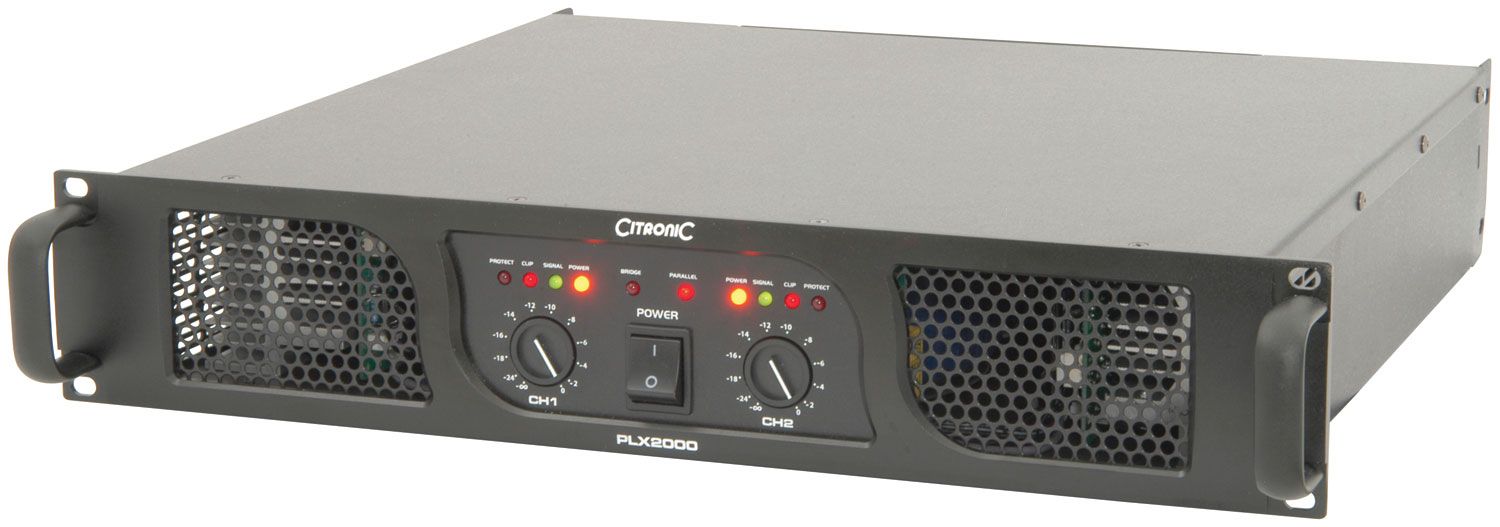

Citronic Plx2000 Power Amplifier 2 X 700w @ 4 Ohms

More Views

Citronic Plx2000 Power Amplifier 2 X 700w @ 4 Ohms
Excl. Vat: £247.80 Incl. Vat: £297.36

Availability: In stock

PLX2000 power amplifier, 2 x 700W @ 4 Ohms 172.214UK by citronic

Description

Details

Citronic Plx2000 - Plx2000 Power Amplifier, 2 X 700w @ 4 Ohms

19" rackmount 2U power amplifiers with dual fan cooling and class H architecture for safe, reliable power delivery. Balanced inputs via 6.3mm jack or XLR sockets, speaker outputs on 2 SPK connectors or 4mm binding posts. High power output stable down to 2 Ohms load per side can also be bridged mono to 4 Ohms. Switchable ground lift, bridge mode and clip limiter.

Features

Bridge mode for high power mono operation
Output stable down to 2 Ohms
Removable handles for low profile install
Switchable clip limiter

Technical Specifications

Power supply : 230Vac, 50Hz (IEC)
Controls : Level channel 1, level channel 2, ground, mode, clip limiter
Input impedance : 20k ohms
Frequency response : 5Hz - 50kHz
Total harmonic distortion : 0.05%
Slew rate : 40V/us
Damping factor : >400
Protection : Short-circuit, overload, D.C. and thermal protect
Dimensions : 482 x 453 x 88mm (2U)
Power rms @ 2 Ohms : 2 x 1000W
Power rms @ 4 Ohms : 2 x 700W
Power rms @ 8 Ohms : 2 x 400W
Power rms bridge @ 4 Ohms : 1700W
Power rms bridge @ 8 Ohms : 1250W
Weight : 22.5kg
Fuse : F8A (6 x 32mm)

Additional Information

Additional Information

SKU 172.214UK
Barcode 5015972100912
Manufacturer Citronic
Manfacturer Code PLX2000
Series No
