Citronic Qp2320 Quad Power Amplifier 4 X 580w

More Views

Citronic Qp2320 Quad Power Amplifier 4 X 580w
Excl. Vat: £283.20 Incl. Vat: £339.84

Availability: In stock

QP2320 quad power amp 4 x 580W 172.243UK by citronic

Description

Details

Citronic Qp2320 - Qp2320 Quad Power Amp 4 X 580w

These quad power amplifiers with 4 fully independent channels and individual volume controls. Fully balanced line inputs and parallel outputs allow signal daisy-chaining to further amplifiers. Designed as a cost effective and efficient solution for multi speaker installations where sound quality is paramount.

Features

Fully balanced signal path
Stable down to 2 Ohms
2U rack-mountable

Technical Specifications

Power supply : 230Vac, 50Hz (IEC)
Controls : 4 x channel gain
Dimensions : 483 x 439 x 88mm

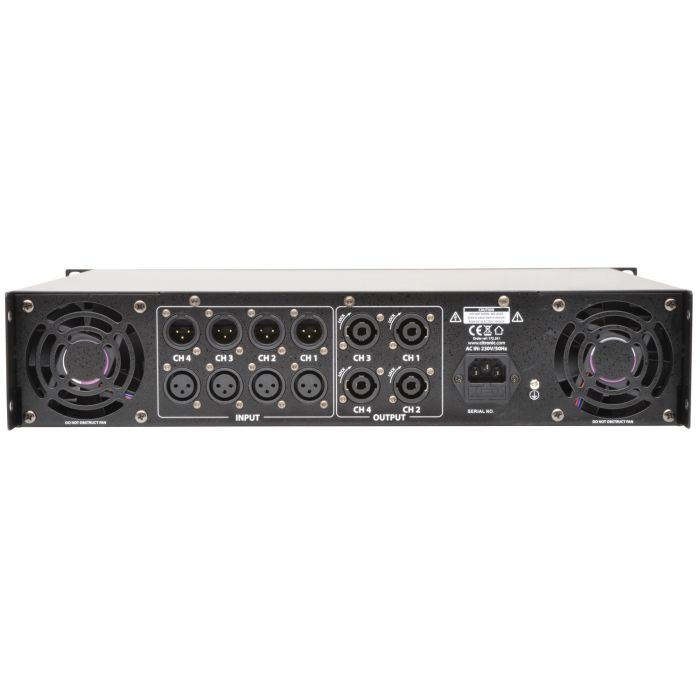

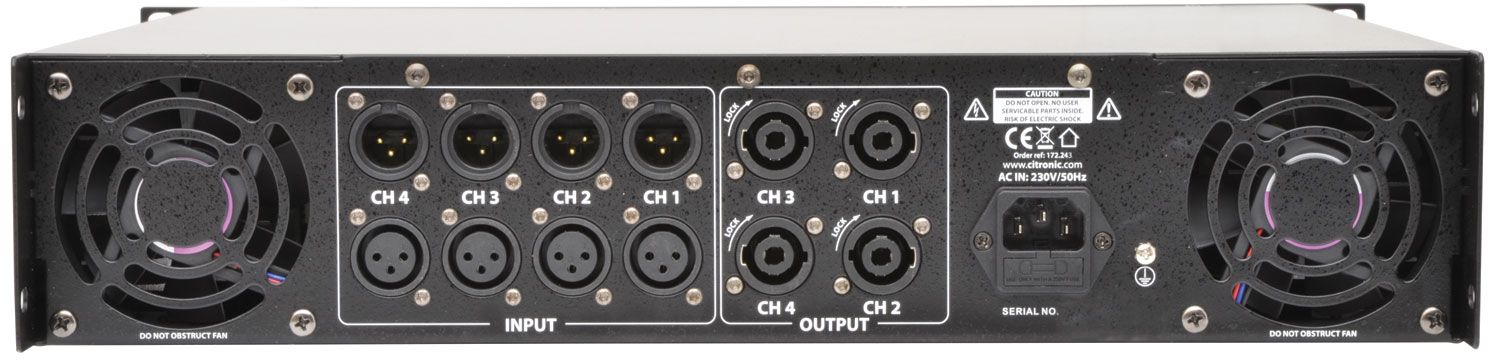

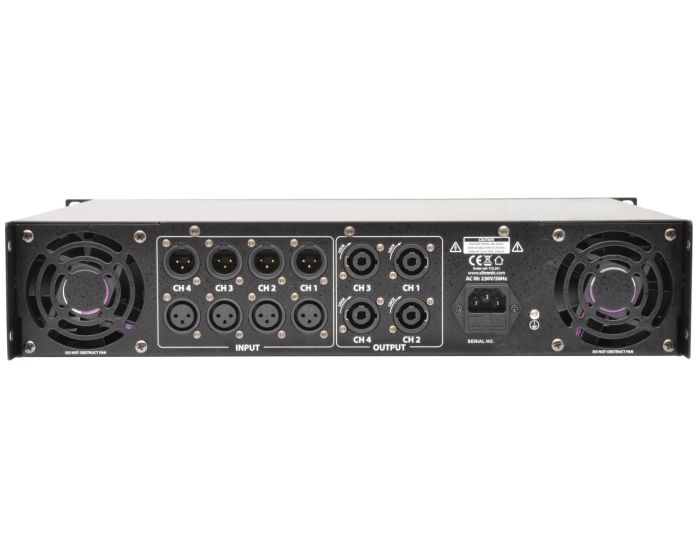

Input : line : 4 x XLRF balanced
Output : line : 4 x XLRM (parallel from inputs)
Speaker : outputs : 4 x SPK connectors
Input impedance : 20k Ohms
Frequency response : 5Hz - 50kHz
THD : 0.05%
Slew rate : 40V/usec
S/N ratio : 103dB
Circuit protection : Short-circuit, DC, overload, soft-start
Power rms @ 8 Ohms : 4 x 300W
Power rms @ 4 Ohms : 4 x 450W
Power rms @ 2 Ohms : 4 x 580W
Weight : 23.5kg
Fuse rating : F12A

Additional Information

Additional Information

SKU 172.243UK
Barcode 5015972114698
Manufacturer Citronic
Manfacturer Code QP2320
Series No
