Mercury Cat6 U/utp Lszh Network Cable 305m Lilac

£127.81
Out of stock
SKU
808.015UK

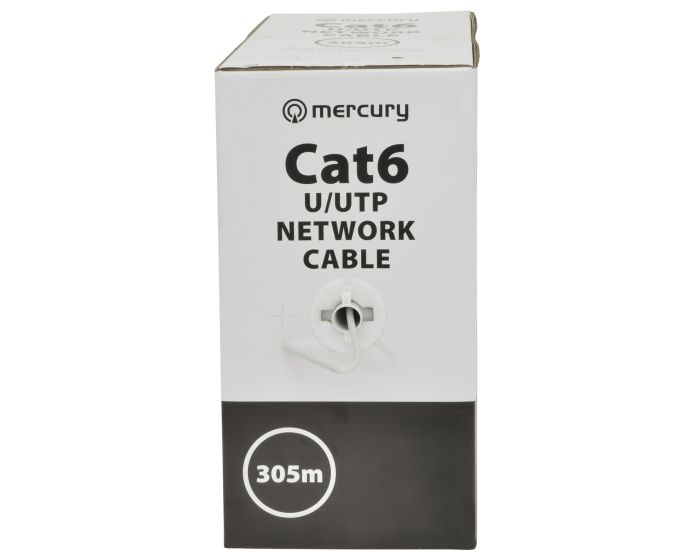

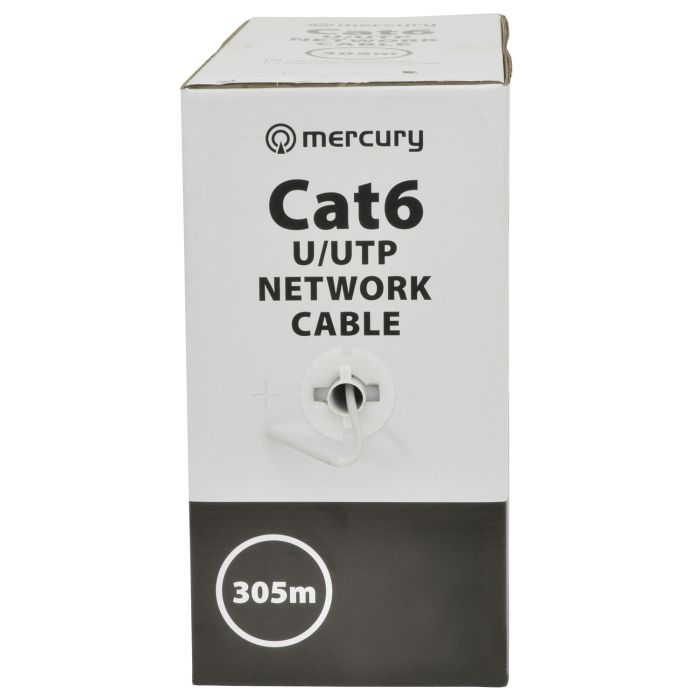

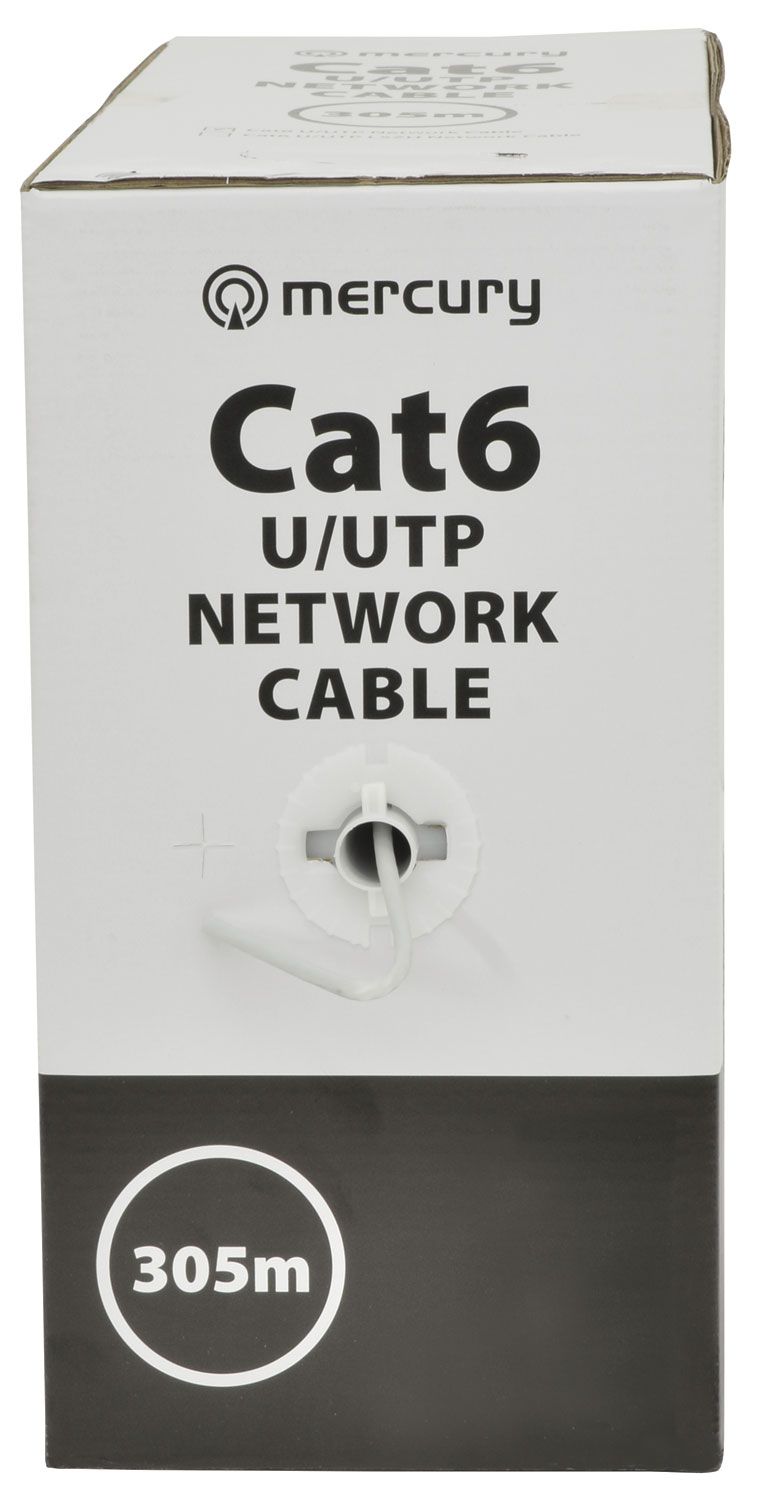

Cat6 U/UTP LSZH Network Cable 305m Lilac 808.015UK by mercury

Mercury - Cat6 U/utp Lszh Network Cable 305m Lilac

Cat6 oxygen free copper twisted pair data cable with low smoke zero halogen sheath. Supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications.

Features

  • Low smoke zero halogen sheath material compliant to RoHS minimises the risk of thick black smoke and poisonous fumes in the event of a fire
  • Oxygen free solid copper conductor
  • Supplied in an easy-pull dispensing box
  • Passes Cat6 fluke test 100m at 250MHz
  • Complies to TIA/EIA-568 Cat6 standard
  • HDBaseT Compliant

Technical Specifications

  • Strands : 8 x 1/0.54mmDia +/-2%
  • Conductor CSA : 8 x 0.229mm2
  • Cable : diameter : 5.8mmDia
  • Insulation : HDPE 0.195mm thickness
  • Sheath : LSHF 0.55mm thickness
  • Capacitance : 5.2nF/100m
  • DC resistance @ 20DegC : <9.5 ohms/100m
  • Impedance (1 to 250MHz) : 100+/-15 ohms
  • Return loss : >17.3dB @100m
  • Attenuation : <32.8dB @100m
  • NEXT : >38.3dB
  • PSNEXT : >36.3dB
  • ELFEXT : >19.8dB
  • PSELFEXT : >16.8dB
  • Phase delay : <570ns
  • Cable colour : Lilac
  • Length : 305m
  • Weight : 12.7kg
  • Conductor : Solid OFC
More Information
BrandMercury
Barcode5015972166154
Manfacturer Code808.015UK
