Mercury Cat6a U/ftp Lszh Network Cable 305m Lilac

£176.33
In stock
Only 4 left
SKU
808.031UK

Cat6a U/FTP LSZH Network Cable 305m Lilac 808.031UK by mercury

Mercury - Cat6a U/ftp Lszh Network Cable 305m Lilac

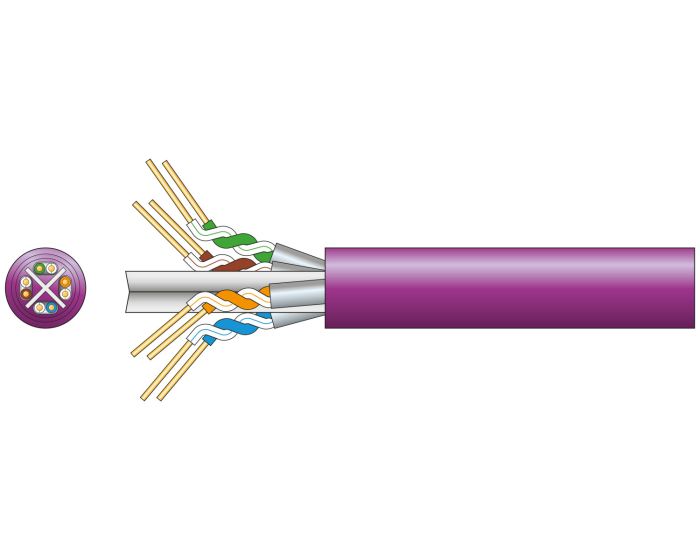

Cat6a oxygen free copper twisted pair data cable with low smoke zero halogen sheath and individual pair aluminium foil screen. Supplied on a wooden drum reel and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications.

Features

  • AWG 23 oxygen free solid copper conductor
  • Supplied on a sturdy wooden drum reel
  • Passes Cat6a fluke test 100m at 500MHz
  • Complies to TIA/EIA-568 Cat6a standard
  • Low smoke zero halogen sheath material compliant to RoHS minimises the risk of thick black smoke and poisonous fumes in the event of a fire
  • HDBaseT Compliant

Technical Specifications

  • Conductor : Solid OFC
  • Strands : 8 x 1/0.565mmDia +/-2%
  • Conductor CSA : 8 x 0.251mm2
  • Cable : diameter : 7.5mmDia
  • Insulation : PE 0.385mm thickness
  • Sheath : LSZH 0.55mm thickness
  • Capacitance : 6.6nF/100m
  • DC resistance @ 20DegC : <7.8 Ohms/100m
  • Impedance (250 to 500MHz) : 100+/-22 Ohms
  • Return loss : >25dB @100m
  • Attenuation : <45.3dB @100m
  • NEXT : >74.3dB
  • PSNEXT : >72.3dB
  • ELFEXT : >14dB
  • PSELFEXT : >11dB
  • Phase delay : <570ns
  • Cable colour : Lilac
  • Length : 305m
  • Weight : 14.5kg
  • Screen : Aluminium foil
  • Impedance (1 to 250MHz) : 100+/-15 Ohms
More Information
BrandMercury
Barcode5015972177044
Manfacturer Code808.031UK
