Mercury Eco Rg6 Air Spaced Pe Coaxial Cable With Cca Braid - 100m Brown

£24.46
In stock
Only 100 left
SKU
808.115UK

Eco RG6 Air Spaced PE Coaxial Cable with CCA Braid - 100m Brown 808.115UK by mercury

Mercury - Eco Rg6 Air Spaced Pe Coaxial Cable With Cca Braid - 100m Brown

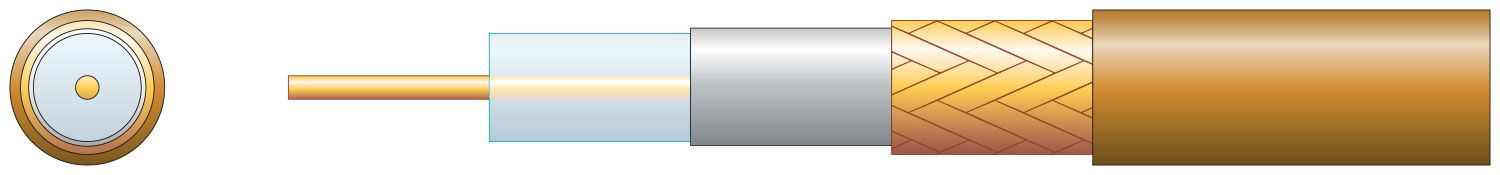

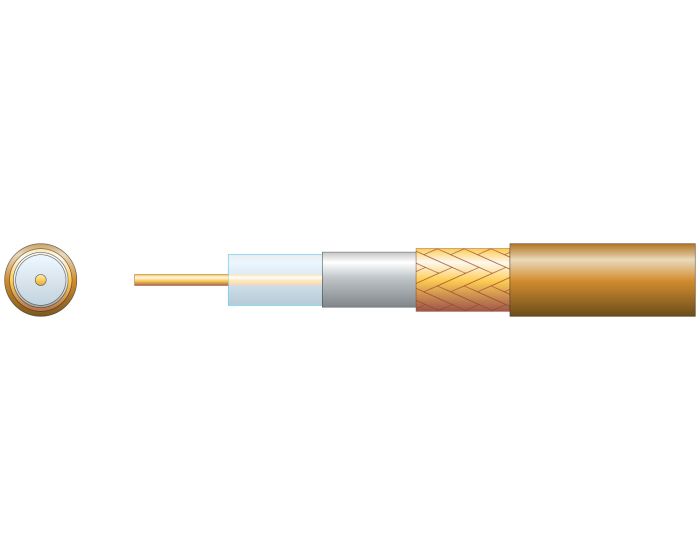

75 Ohms RG6 coaxial cable constructed of solid copper clad steel conductor, air spaced polyethylene dielectric, aluminium foil screen, copper clad aluminium braid and PVC sheath. The overall screen and braid significantly reduce noise penetration to the conductor making it Can be used for digital, satellite and cable TV signal transmission.

Features

  • Solid CCS conductor
  • Air spaced PE dielectric
  • CCA braid
  • Binded aluminium foil screen
  • Supplied in 100m reel with metric cut markers

Technical Specifications

  • Conductor diameter : 1mmDia
  • CSA : 0.79mm2
  • Dielectric : 4.6mmDia air spaced PE
  • Braid : 48 x 0.12mmDia
  • Screen : Aluminium / PET foil
  • Cable : diameter : 6.6mmDia
  • Impedance : 75 Ohms
  • Capacitance : 54pF/m
  • Velocity factor : 83%
  • Length : 100m
  • Weight : 4.2kg
  • Return loss 5-400MHz : 24dB min./100m
  • Return loss 450-1000MHz : 20dB min./100m
  • Return loss 1000-2150MHz : 16dB min./100m
  • Attenuation @ 5MHz : 2.9dB max./100m
  • Attenuation @ 50MHz : 5.2dB max./100m
  • Attenuation @ 100MHz : 6.9dB max./100m
  • Attenuation @ 200MHz : 10.2dB max./100m
  • Attenuation @ 400MHz : 14.9dB max./100m
  • Attenuation @ 860MHz : 20.3dB max./100m
  • Attenuation @ 1000MHz : 22.5dB max./100m
  • Attenuation @ 1750MHz : 29.8dB max./100m
  • Attenuation @ 2150MHz : 33.6dB max./100m
  • Conductor material : Solid CCS
  • Braid material : CCA
  • Cable colour : Brown
More Information
BrandMercury
Barcode5015972166598
Manfacturer Code808.115UK
