Mercury Economy Outdoor U/utp Network Cable 305m Black
£46.63
In stock
Only 100 left
SKU
808.023UK
Economy Cat5e Outdoor U/UTP Network Cable 305m black 808.023UK by mercury

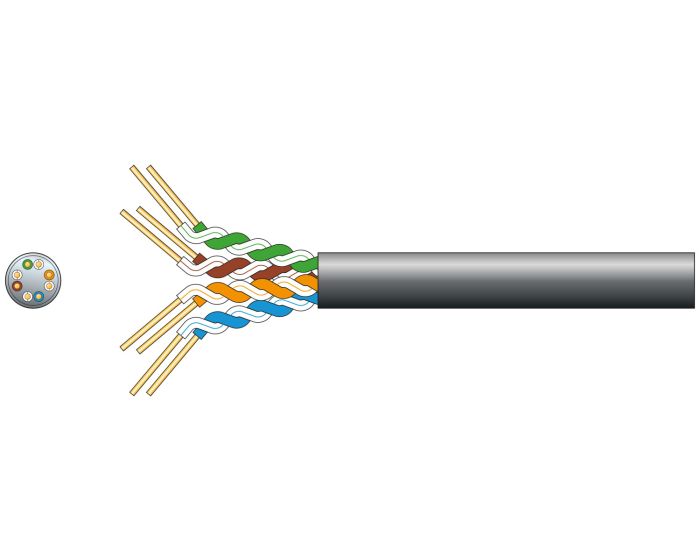

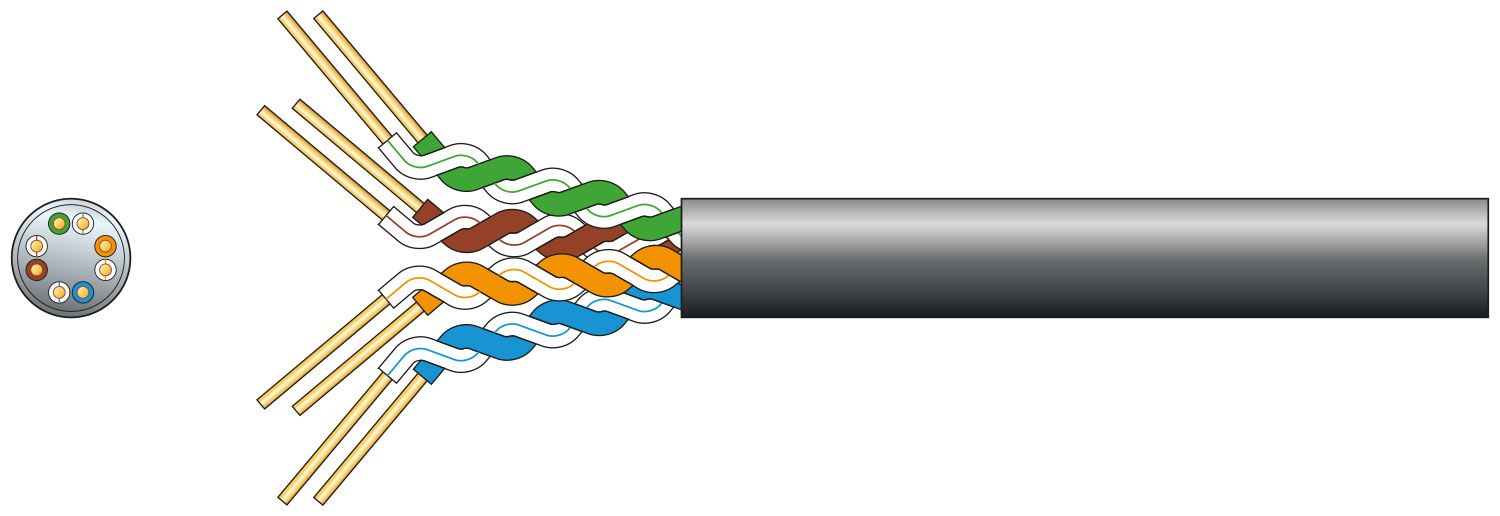

Mercury - Economy Cat5e Outdoor U/utp Network Cable 305m Black
Solid conductor twisted pair data cable with PE sheath supplied in dispensing box and marked at 1 metre intervals. Can be used for high speed data transmission such as Gigabit Ethernet outdoor applications.
Features
- Solid copper clad aluminium conductor
- Passes Cat5e fluke test 100m at 100MHz
- Supplied in an easy-pull dispensing box
- PE sheath with UV resistant properties ideal for outdoor installation
Technical Specifications
- Conductor : Solid CCA
- Strand : 8 x 1/0.51mmDia +/-2%
- CSA : 8 x 0.204mm2
- Cable : diameter : 5mmDia
- Insulation : HDPE 0.19mm thickness
- Sheath : PE 0.5mm thickness
- Impedance : 100 Ohms (+/-15)
- DC resistance @ 20DegC : <35 Ohms/100m
- Return loss : >20dB @ 100m
- NEXT : >40dB @ 100m
- PSNEXT : >38dB @ 100m
- Cable colour : Black
- Length : 305m
- Weight : 5.5kg
Brand | Mercury |
---|---|
Barcode | 5015972172292 |
Manfacturer Code | 808.023UK |
