Mercury Rg59b/u Foam Pe With Copper Braid - 100m Black

£36.35
In stock
Only 100 left
SKU
808.101UK

RG59B/U Foam PE with Copper Braid - 100m Black 808.101UK by mercury

Mercury - Rg59b/u Foam Pe With Copper Braid - 100m Black

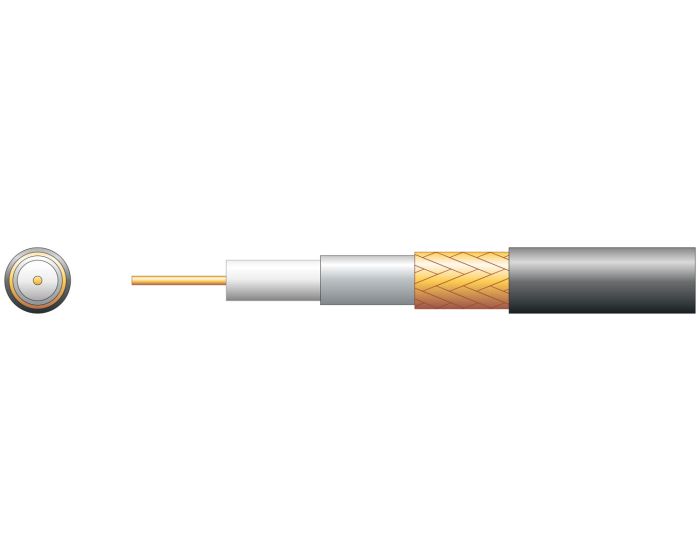

75 Ohms RG59 coaxial cable constructed of solid oxygen free copper conductor, foam filled polyethylene dielectric, aluminium foil screen, oxygen free copper braid and PVC sheath. Ideal for video signal transmission such as CCTV.

Features

  • Solid OFC conductor
  • Foam filled PE dielectric
  • Binded aluminium foil screen
  • OFC braid
  • Supplied in 100m reel with metric cut markers

Technical Specifications

  • Conductor diameter : 0.8mmDia
  • Braid : 48 x 0.12mmDia
  • Screen : Aluminium / PET foil
  • Cable : diameter : 6mmDia
  • Dielectric : 3.7mmDia foam PE
  • Impedance : 75 Ohms
  • Capacitance : 67pF/m
  • CSA : 0.5mm2
  • Velocity factor : 83%
  • Colour : Black
  • Length : 100m
  • Weight : 3.5kg
  • Return loss 5-400MHz : 24dB min./100m
  • Return loss 450-1000MHz : 20dB min./100m
  • Return loss 1000-2150MHz : 16dB min./100m
  • Attenuation @ 5MHz : 2.8dB max./100m
  • Attenuation @ 1000MHz : 24.7dB max./100m
  • Attenuation @ 100MHz : 7.3dB max./100m
  • Attenuation @ 50MHz : 5.1dB max./100m
  • Attenuation @ 200MHz : 10.1dB max./100m
  • Attenuation @ 400MHz : 14.9dB max./100m
  • Attenuation @ 860MHz : 22.1dB max./100m
  • Attenuation @ 1750MHz : 34.1dB max./100m
  • Attenuation @ 2150MHz : 38.1dB max./100m
  • Conductor material : Solid OFC
  • Braid material : OFC
More Information
BrandMercury
Barcode5015972166475
Manfacturer Code808.101UK
