Mercury Rg59b/u Foamed Pe Shortgun Cable With Cca Braid - 100m Black

£71.02
In stock
Only 100 left
SKU
808.105UK

RG59B/U Foamed PE Shortgun Cable with CCA Braid - 100m Black 808.105UK by mercury

Mercury - Rg59b/u Foamed Pe Shortgun Cable With Cca Braid - 100m Black

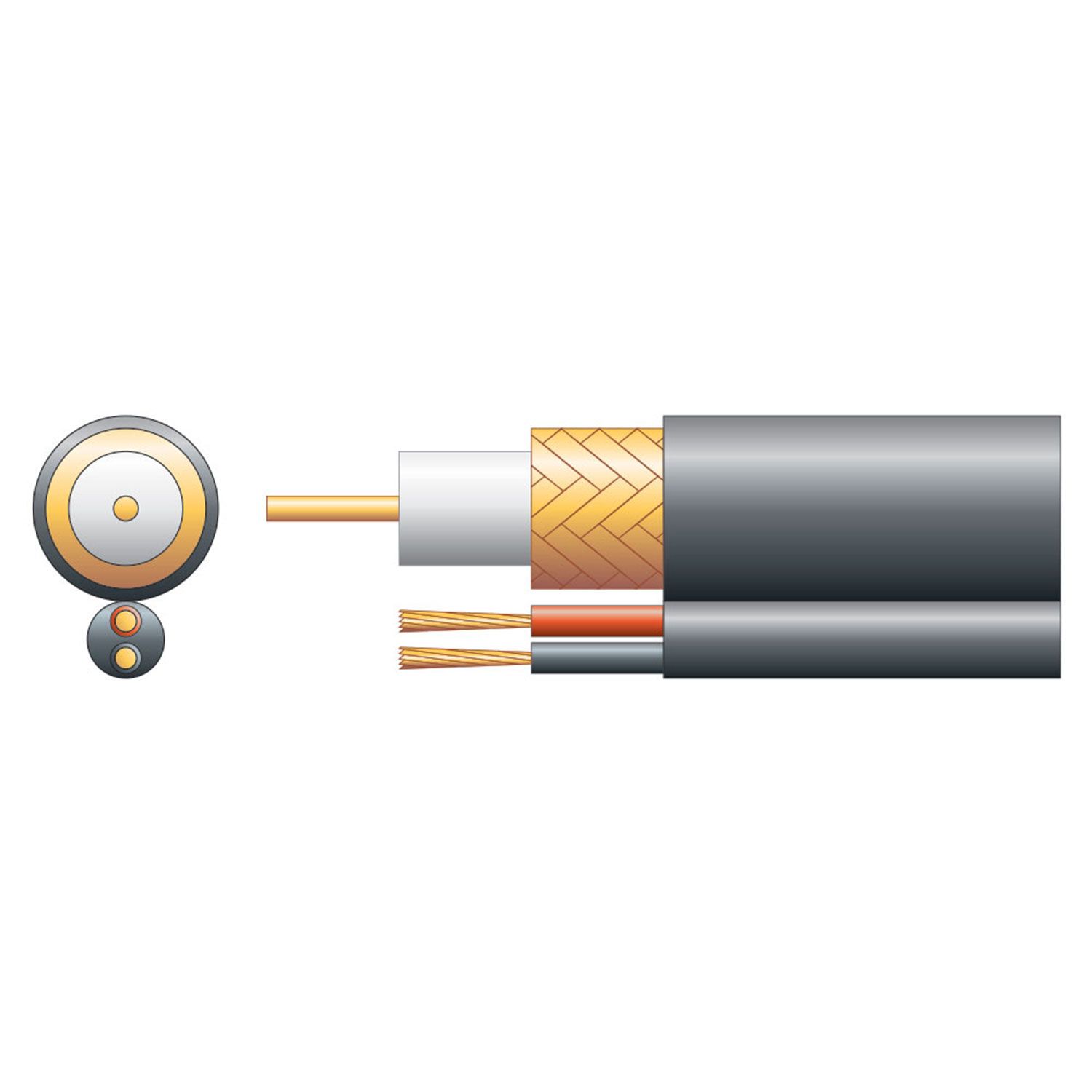

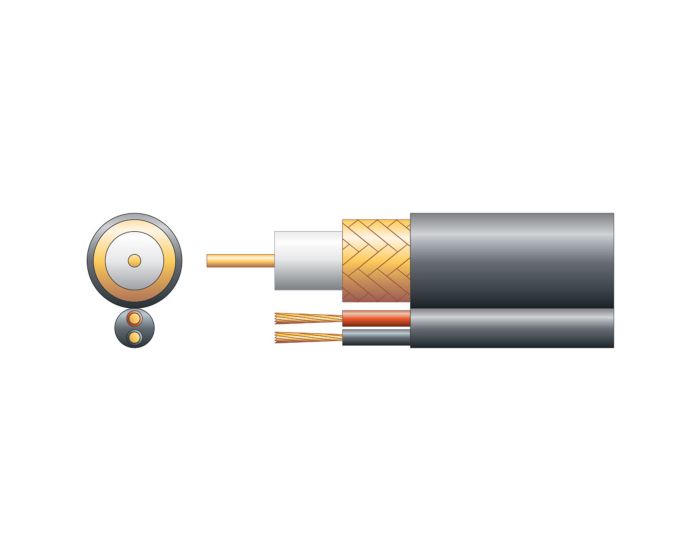

75 Ohms RG59 coaxial cable coupled with a two core power cable. Constructed of a solid oxygen free copper conductor, foam filled polyethylene dielectric and copper clad aluminium braid. Paired with a two core strand conductor double insulated power cable. Designed for CCTV power and signal transmission.

Features

  • Solid OFC coaxial conductor
  • Foam filled PE dielectric
  • CCA braid
  • Stranded OFC power cable conductor
  • Supplied in 100m reel with metric cut markers

Technical Specifications

  • Conductor diameter : 0.8mmDia
  • CSA : 0.5mm2
  • Dielectric : 3.7mmDia foam PE
  • Braid : 48 x 0.12mmDia
  • Cable : diameter : 6mmDia
  • Impedance : 75 Ohms
  • Capacitance : 67pF/m
  • Velocity factor : 83%
  • Power cable : 2 x 7/0.38mmDia (0.79mm2) bare copper, red/black
  • Max. current : 6A
  • Colour : Black
  • Length : 100m
  • Weight : 6.4kg
  • Return loss 5-400MHz : 24dB min./100m
  • Return loss 450-1000MHz : 20dB min./100m
  • Return loss 1000-2150MHz : 16dB min./100m
  • Attenuation @ 5MHz : 2.8dB max./100m
  • Attenuation @ 50MHz : 5.1dB max./100m
  • Attenuation @ 100MHz : 7.3dB max./100m
  • Attenuation @ 200MHz : 10.1dB max./100m
  • Attenuation @ 400MHz : 14.9dB max./100m
  • Attenuation @ 860MHz : 22.1dB max./100m
  • Attenuation @ 1000MHz : 24.7dB max./100m
  • Attenuation @ 1750MHz : 34.1dB max./100m
  • Attenuation @ 2150MHz : 38.1dB max./100m
  • Conductor material : Solid OFC
  • Braid material : CCA
More Information
BrandMercury
Barcode5015972166499
Manfacturer Code808.105UK
