RGB DMX Interface Controller for RGB LED Tape Light NJD

More Views

RGB DMX Interface Controller for RGB LED Tape Light NJD
Excl. Vat: £22.82 Incl. Vat: £27.38

Availability: Out of stock

This NJD DMX Controller can run in stand alone Mode (using onboard DIP switches) or by DMX control. Connect to any DMX digital console to achieve dimming and and various colour changing patterns

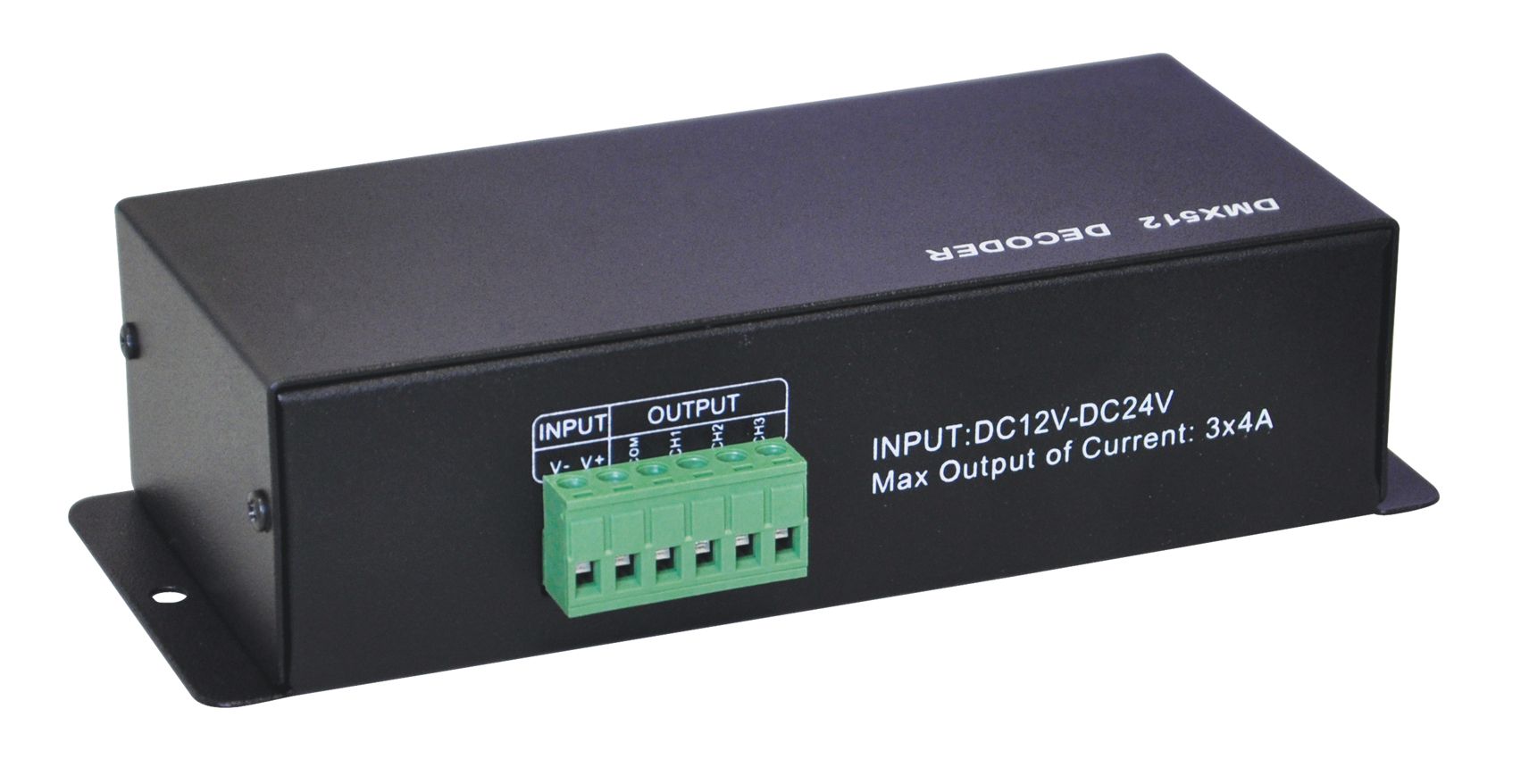

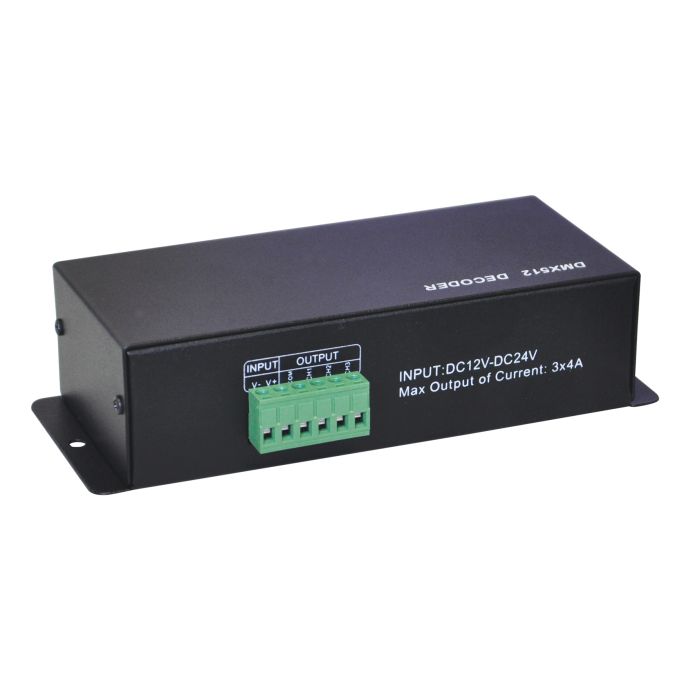

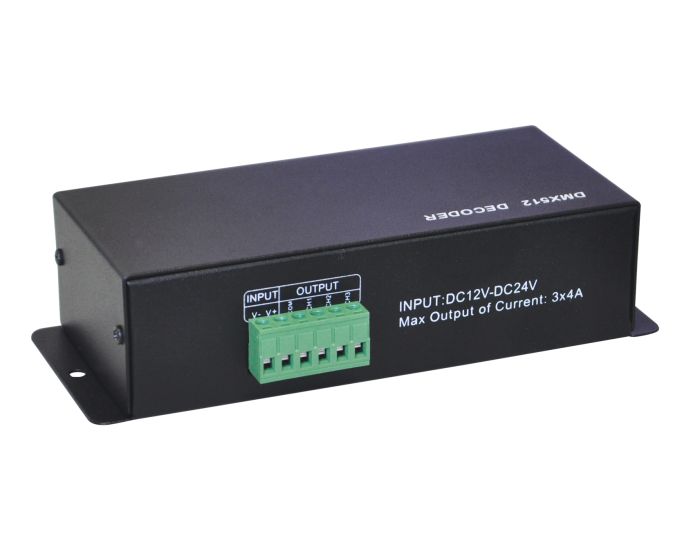

Image is guide only

Description

Details

The NJD DMX Interface/Controller for use with NJD RGB LED Tape Light from our Range.Description

This NJD DMX Controller can run in stand alone Mode (using on-board DIP switches) or by DMX control. It receives standard DMX-512 digital control signals and convert them to PWM (Pulse Width Modulation) signals for driving LEDs. Connect to any DMX digital console to achieve dimming and and various colour changing patterns.

Features
  • 5021196777793
  • For use with NJD RGB LED Tape Light
  • Choose from Stand Alone Mode or DMX Control
  • Dimming and Colour Changing Patterns via DMX Digital Console
  • Converts DMX-512 to PWM to drive LEDs
  • Compact Design with Labelled Connectors
Technical Specification
  • Product EAN - 5021196661658
  • Item priced per - 1
  • Colour - White
  • Product Dimensions (mm) - 40x165x65
  • Weight (kg) - 340
  • DC Input (V) - 12
  • Outputs - Max 4A channel
  • Depth (mm) - 65
  • Height (mm) - 40
  • Width (mm) - 165
  • Gross Weight (Packaged) (kg) - 0.4
Additional Information

Additional Information

SKU 03-NJ971
Barcode 5021196661658
Manufacturer NJD
Manfacturer Code NJ971 Comms
Series No
