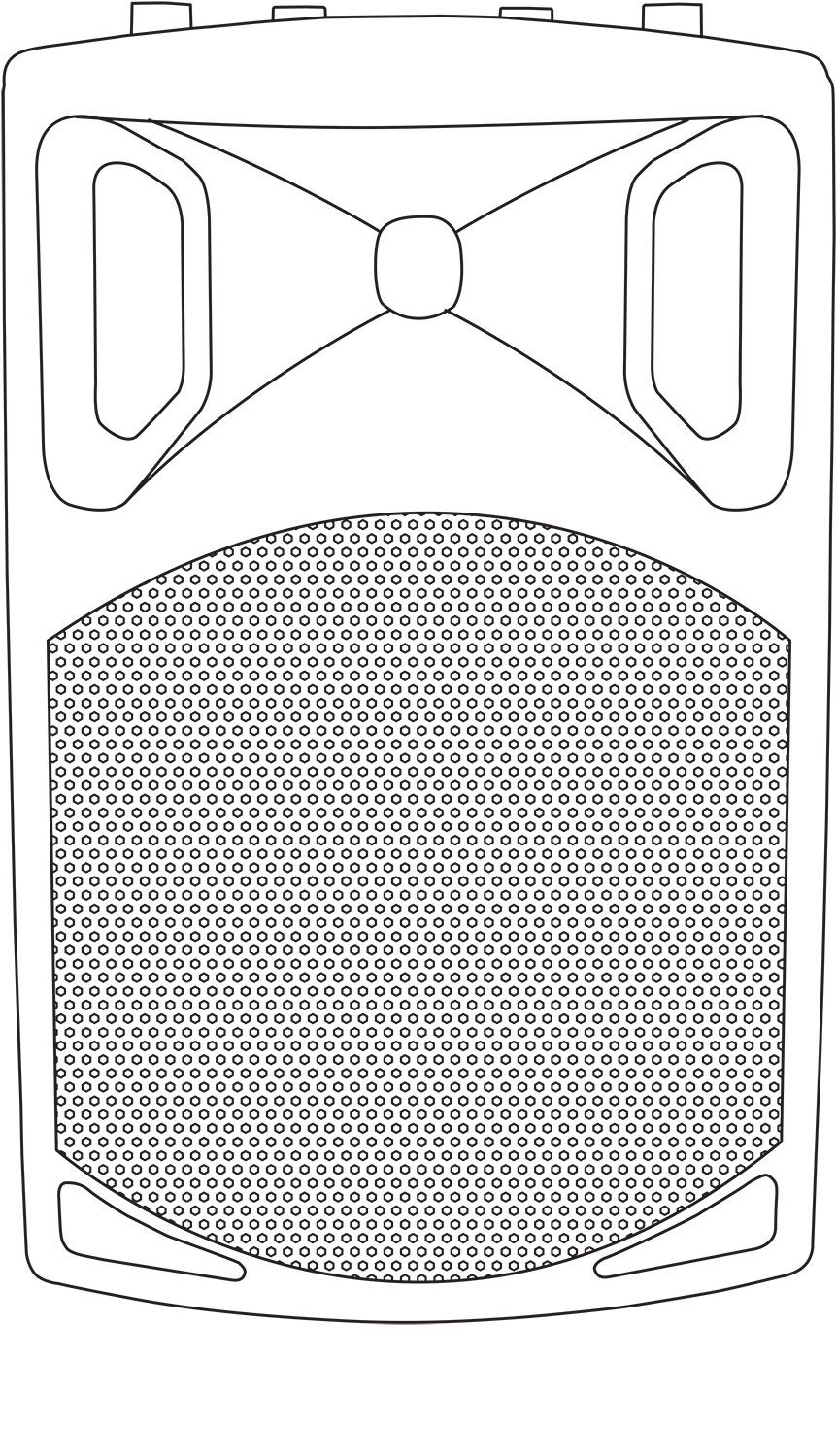

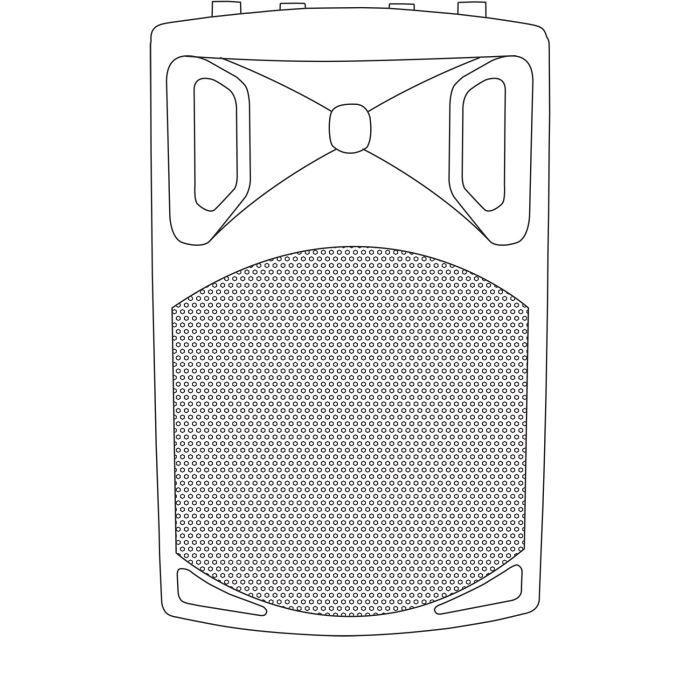

Qtx Qx12a Active Speaker Cabinet

£183.31
Out of stock
SKU
178.755UK

QX12A Active Speaker Cabinet 178.755UK by qtx

Qtx Qx12a - Qx12a Active Speaker Cabinet

Active PA speaker units in a contemporary styled moulded ABS cabinet with integral carry handle and a constant directivity horn. The built-in mixer amplifier section delivers high output to the driver units to develop high SPLs.

Features

  • Built-in amplifier with mixer section
  • Lightweight ported cabinet
  • Titanium compression driver
  • 35mm Dia internal top hat
  • Mic/line inputs with volume controls
  • Tone controls

Technical Specifications

  • Power supply : 230Vac, 50Hz (IEC)
  • THD : 0.1%
  • SNR : 87dB
  • Dispersion : 90Deg x 60Deg (H x V)
  • Impedance : 4 Ohms
  • HF driver : 38mm Ti compression driver
  • SPL @ 1W/1m : 101dB
  • Crossover frequency : 3.5kHz
  • Max. SPL : 127dB
  • Power rms : 200W
  • Power max. : 400W
  • LF driver : 300mm (12")
  • LF driver : coil size : 52mmDia
  • HF driver : coil size : 25mmDia
  • Frequency response : 45Hz - 20kHz
  • Dimensions : 345 x 565 x 320mm
  • Weight : 13.2kg
  • Inputs : Mic (combo), Line (RCA)
More Information
BrandQTX
Barcode5015972148365
Manfacturer CodeQX12A
