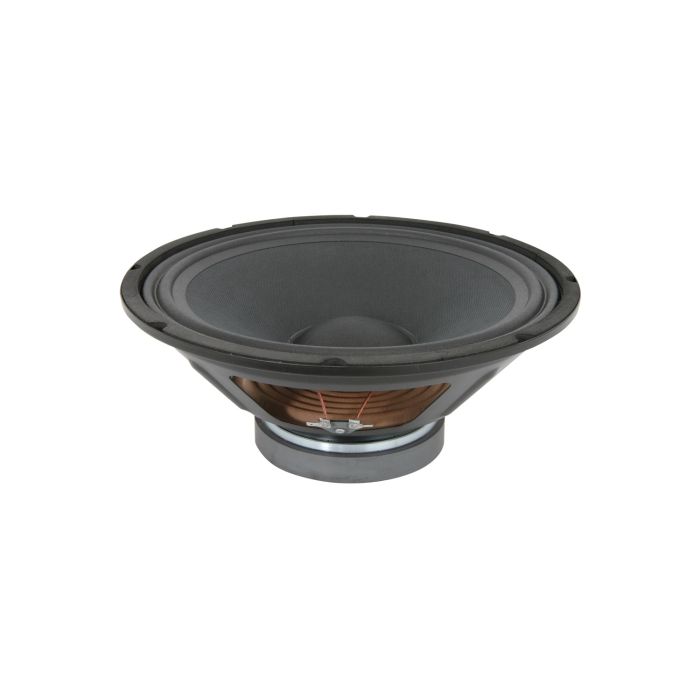

Qtx 4 Ohm 12" Driver For Qr12a (178.204uk)

Qtx - 4 Ohm 12" Driver For Qr12a (178.204uk)

These chassis speakers to replace the main driver in the QTX Sound QR series active cabinets.

Features

Vented magnets
Spade terminals

Technical Specifications

Impedance : 4 ohms
Power max. : 400W
Power rms : 200W
Magnet weight : 1.134kg (40oz)
Magnet size : 20 x 140mmDia
Diameter : 30cm (12")
Voice coil : 52mm (2")
Frequency response : 45Hz - 6kHz
SPL @ 1W/1m : 98dB
Dimensions : 129 x 307mmDia
Weight : 4.02kg
