Qtx Umbra-1200 Low Mist Generator

Qtx Umbra-1200 - Umbra-1200 Low Mist Generator

Stage effect machine producing "dry ice" type low fog effects without the use of carbon dioxide or ice. New technology delivers a ground-hugging mist from standard fog fluid and water. Housed in a full flight case with castors for portability, the main unit has a removable fluid tank and easy access water reservoir with drain tap. the mist is delivered via a flexible duct and output funnel to allow the user to direct the effect onto a specific area of the stage. Operated by the onboard digital control panel, which can be detached as a wired remote or via DMX512. Designed to provide a dramatic low flowing mist scene for stages, theatres and themed events.

Features

• Supplied in a full flight case with lockable castors
• Operates from standard fog fluid and water
• Professional ground level mist effect
• Requires no ice or carbon dioxide

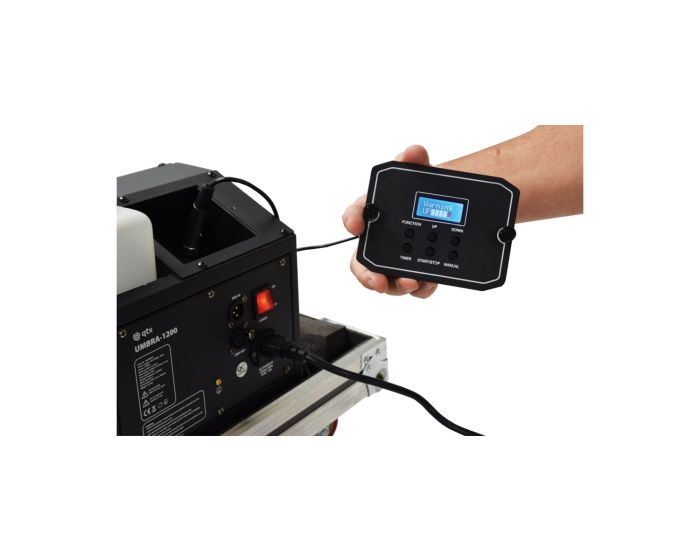

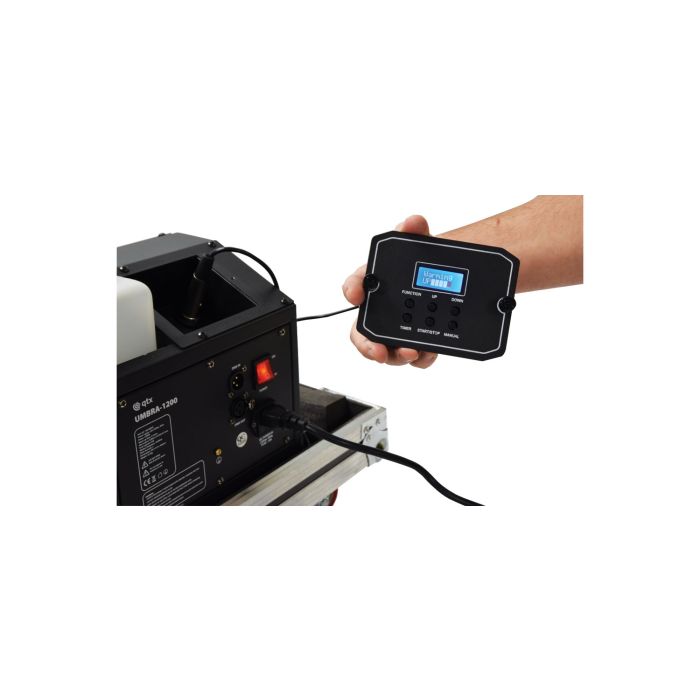

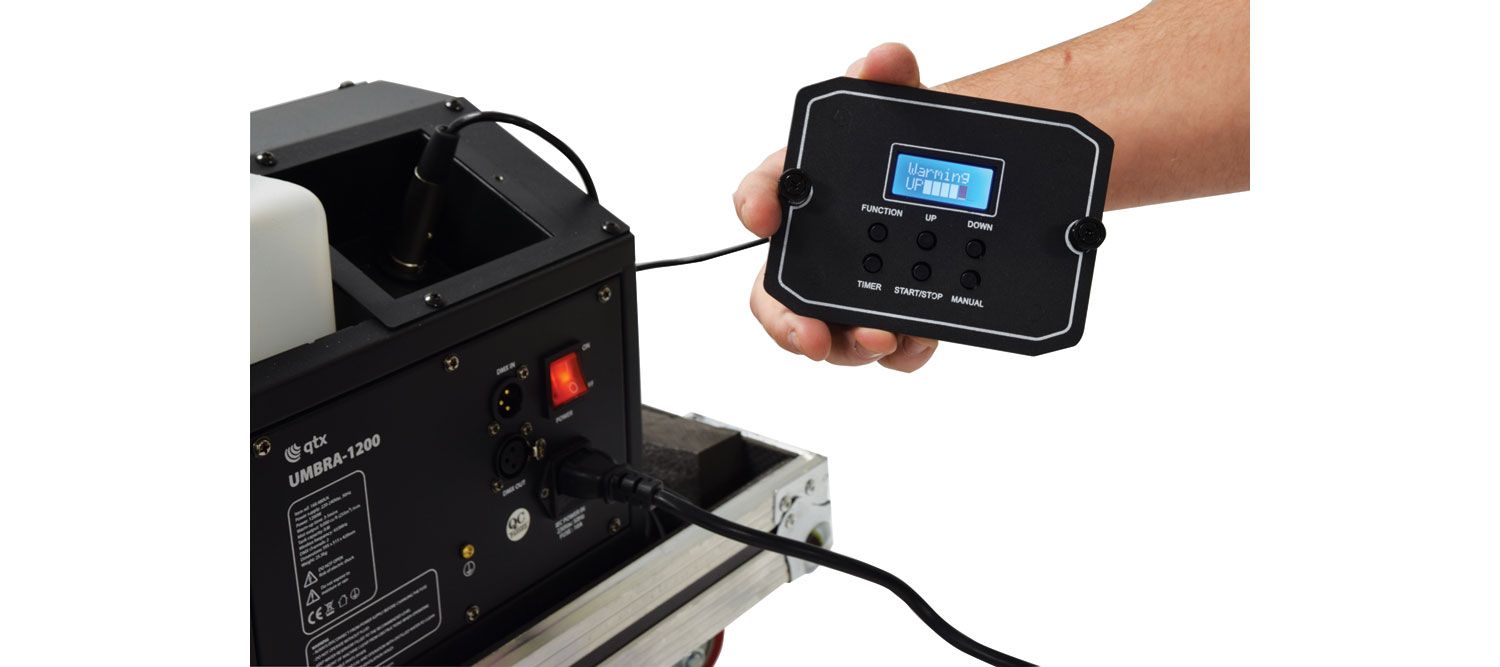

• Removable digital control panel for remote control

Technical Specifications

• Power supply : 220-240Vac, 50Hz (IEC)
• Dimensions : 590 x 510 x 410mm (in flight case)
• Weight : 25kg (in flight case)
• Connection : DMX in & out (3-pin XLR)
• Power consumption : 1200W
• Fluid capacity : 0.8 litre (fog fluid)
• Fog output : 9000 cu ft (255m3) /min
• DMX channels : 2
• Warm up time : 3-5 minutes
• Fuse : F8AL
• Remote control connection : 7-pin XLR
