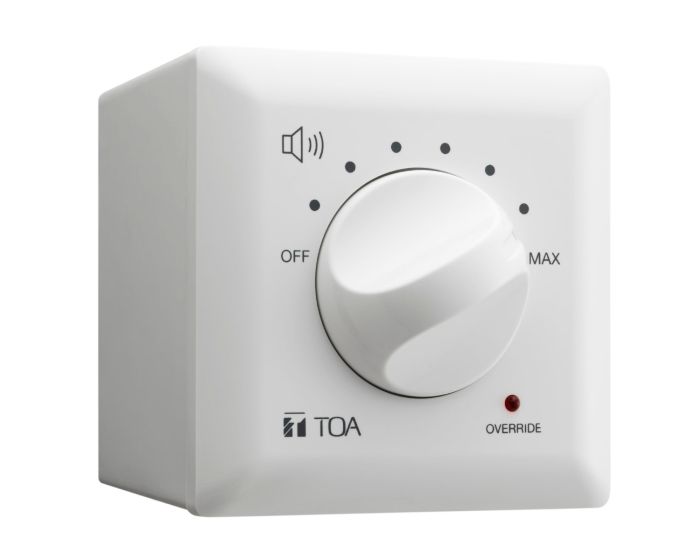

Toa AT-4060B 60W 100v Line Volume Attenuator

Designed with ergonomics in mind, the control knob comes in a size that provides a comfortable grip and excellent control with every turn. Consisting of 8-step attenuation, the 100v Attenuator is built to provide precision volume control with a difference of 3 dB in every step. The built-in overriding relay feature allows emergency paging which is indicated by the LED light when activated.

Features

• 8-step attenuation level control (+/-3 dB)
• Ergonomic control knob with better grip for easy turn
• 24 VDC overriding relay with red LED indicator
• Terminal block for thicker diameter cable
• Clip-on face plate
• 2- / 3- / 4-wire system
• Surface or flush mount
• Glossy finish in white

• Product EAN 5021196167723
• Override Indicator Red LED (4-wire connection only)
• Overriding Voltage 24 V, 11 mA DC (4-wire connection only)
• Terminal Screw-type x 5
• Usable Cable Cable range 22 - 14 AWG
• Colour White
• Product Dimensions (mm) 86 x 86 x 51 mm
• Attenuation 8 steps ( 0 dB, -3 dB, 6 dB, 9 dB, 12 dB, 15 dB, 18 dB, OFF )
• Peak Music Power (W) 30
• Finish : Knob, Cover Panel: ABS Resin, White (RAL9016 or equivalent) / Front Panel: Surface treated steel plate
