Trantec S4.10 Aerobic Fitness Wireless Radio Microphone System S4.10-W-EB-GG3 ch38

Trantec S4.10 Aerobic Fitness Wireless Radio Microphone System S4.10-W-EB-GG3 ch38
Excl. Vat: £320.00 Incl. Vat: £384.00

Availability: In stock

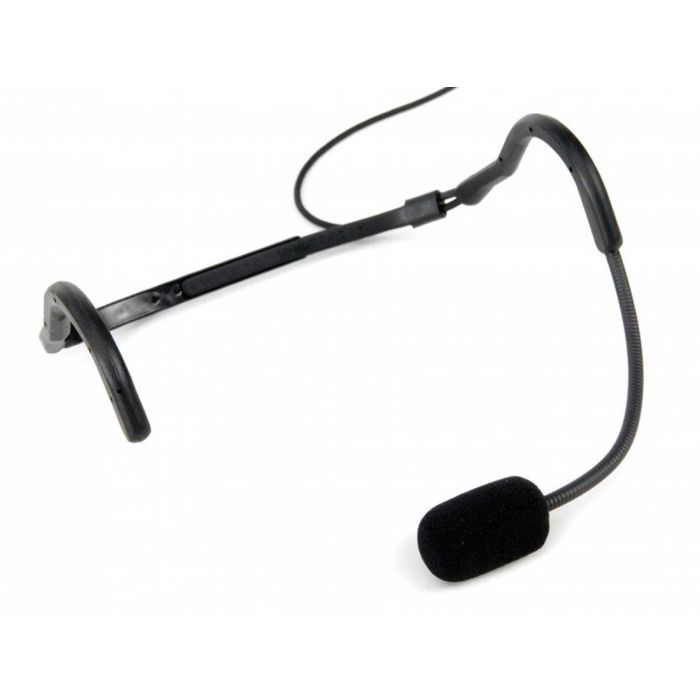

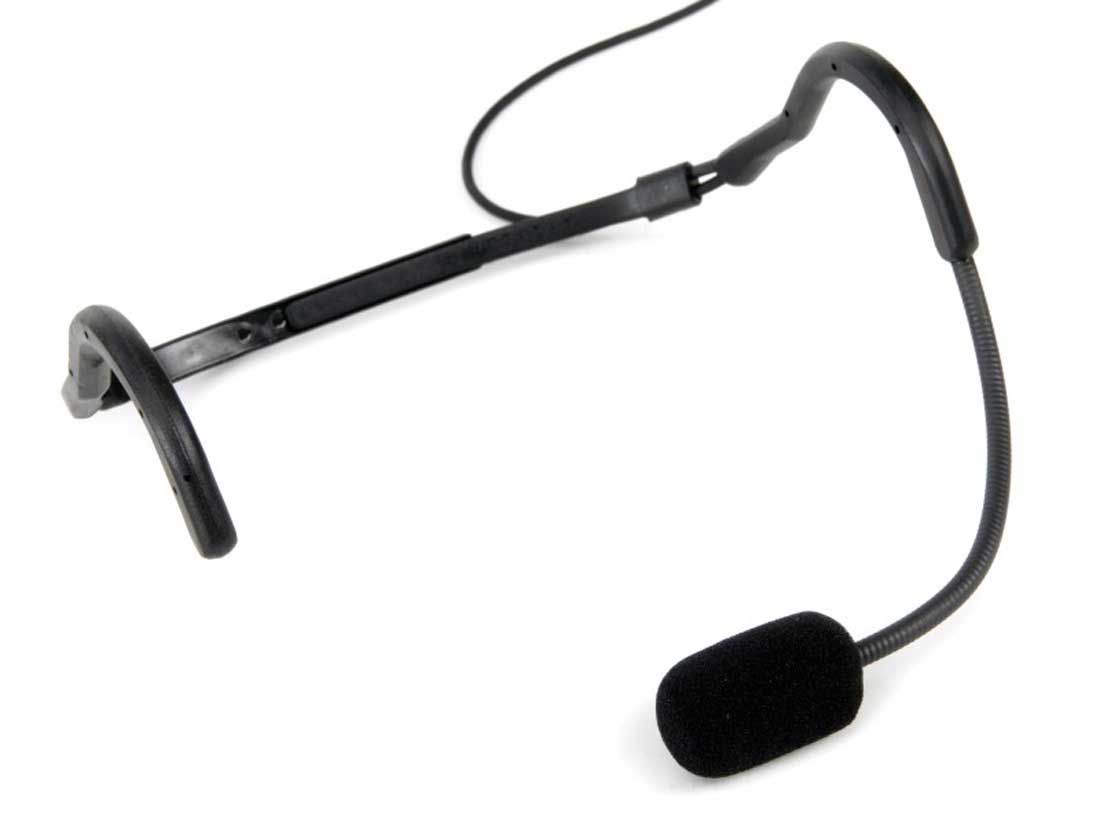

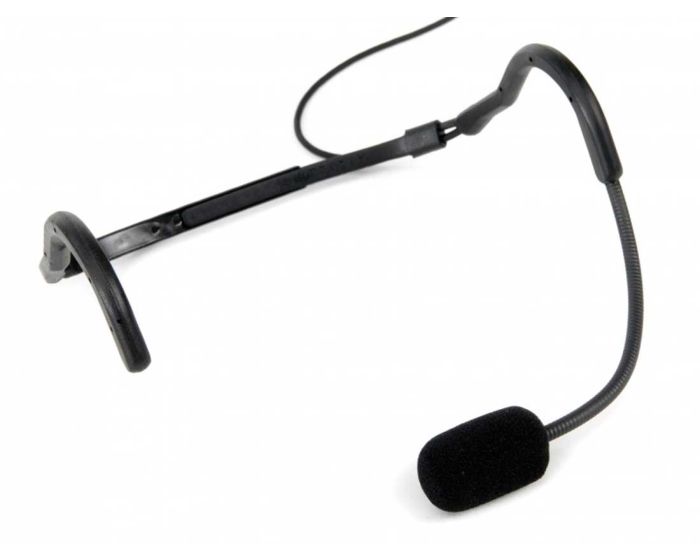

Aerobic Fitness Presentation System. Trantec S4.10-W-EB-GG3 on channel 38 with four licence free frequencies and comes with one Beltpack Transmitter, one Headset Microphone (MIC-SJ66 in either blue, black or yellow) and one Neoprene Aerobic Belt (ACC-AB1000).



Trantec S4.10 Aerobic Fitness Wireless Radio Microphone System PackageS4.10-W-EB-GG3 ch38

Trantec S4.10 wireless headworn system is aimed at the professional fitness Aerobic instructor and is the system of choice at many of the top Health and gym centers. The Trantec S4.10W is  the next generation of Aerobic Fitness Instructor Radio Microphones with 10-channel ch38 UHF wireless, replacing the Trantec S4.16 range. S4.10 offers the same quality and functionality as its predecessor. Aerobic Fitness microphones connect to body pack transmitters. The body pack transmitter, and desktop receiver use infrared signals to syncronise.

The S4.10 body pack transmitters can be used on any of the pre-programmed frequencies.

  • 16 selectable frequencies available
  • Up to 10 simultaneous channels
  • Fully synthesised PLL quartz tuning technology
  • Receiver LED’s show AF peak level, RF level & diversity channel A or B
  • Diversity operation with detachable antenna
  • Professional metal enclosure
  • 19” rack mount option for one or two receivers

Receiver Specifications

  • Diversity Recpetion Antenna Diversity
  • Sensitivity 10uV at 45dBA, S/N
  • Squelch Tone SQ, Carrier SQ, Noise SQ
  • Audio Frequency Response 50Hz - 1.5kHz
  • Audio Output Level (Max.) Balanced (XLR socket): -20dBu Unbalanced(1/4" jack socket): 10dBu
  • Power Supply 12 VDC 500mA
  • Dimensions 215(W) x 39(H) x 102(D)mm (excluding antenna and BNC)
  • Weight 480g

Belt Pack Transmitter Specifications

  • RF Carrier Power 10mW
  • Audio Frequency Response 50 Hz – 1.5kHz
  • Audio Input Level -6 dBV (maximum), mic gain 0dB
  • Battery Life Approx. 10 hours
  • Power Supply 1 AA size alkaline battery, 1.5V
  • Finish Resin, coating
  • Dimensions 62(W) x 100(H) x 25(D)mm (With clip)
  • Weight 85g with battery
Additional Information

Additional Information

SKU S4.10-W-EB-GG3
Barcode No
Manufacturer Trantec
Manfacturer Code S4.10-W-EB-GG3 S4.10
Series S4.10
