Trantec S4.10 Lapel Wireless Radio Microphone S4.04-L-EB-GD5 ch70

£250.80
Out of stock
SKU
S4.04-L-EB-GD5

Tranatec S4.04-L-EB-GD5 is available in channel 70 and comes with one Beltpack transmitter and one lapel microphone..

Trantec S4.10 Lapel Wireless Radio Microphone S4.04-L-EB-GD5 ch70,

Trantec S4.10 wireless handheld is the next generation of 10-channel ch70 UHF wireless, replacing the Trantec S4.16 range. S4.10 offers the same quality and functionality as its predecessor. Lapel microphones connect to body pack transmitters. The bodypack transmitter, and desktop receiver use infrared signals to syncronise.

The S4.10 body pack transmitters can be used on any of the pre-programmed frequencies.

  • 16 selectable frequencies available
  • Up to 10 simultaneous channels
  • Fully synthesised PLL quartz tuning technology
  • Receiver LED’s show AF peak level, RF level & diversity channel A or B
  • Diversity operation with detachable antenna
  • Professional metal enclosure
  • 19” rack mount option for one or two receivers

Receiver Specifications

  • Diversity Recpetion Antenna Diversity
  • Sensitivity 10uV at 45dBA, S/N
  • Squelch Tone SQ, Carrier SQ, Noise SQ
  • Audio Frequency Response 50Hz - 1.5kHz
  • Audio Output Level (Max.) Balanced (XLR socket): -20dBu Unbalanced(1/4" jack socket): 10dBu
  • Power Supply 12 VDC 500mA
  • Dimensions 215(W) x 39(H) x 102(D)mm (excluding antenna and BNC)
  • Weight 480g

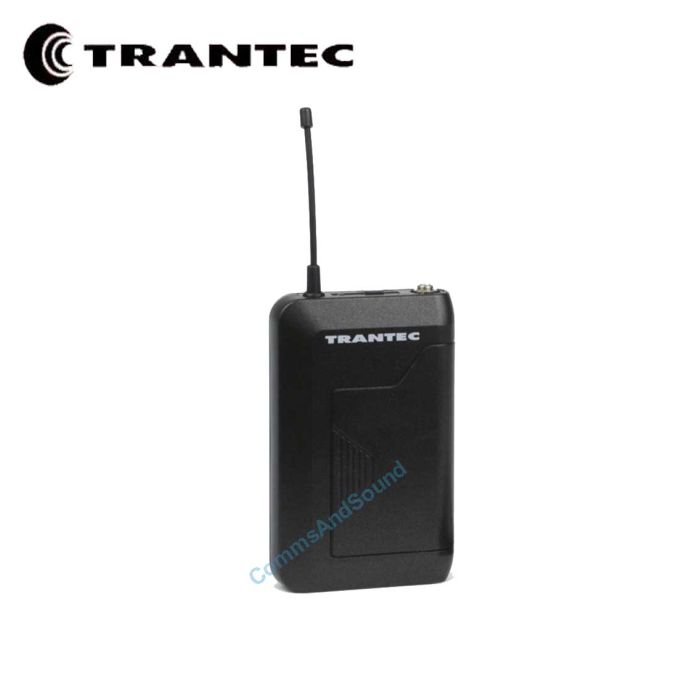

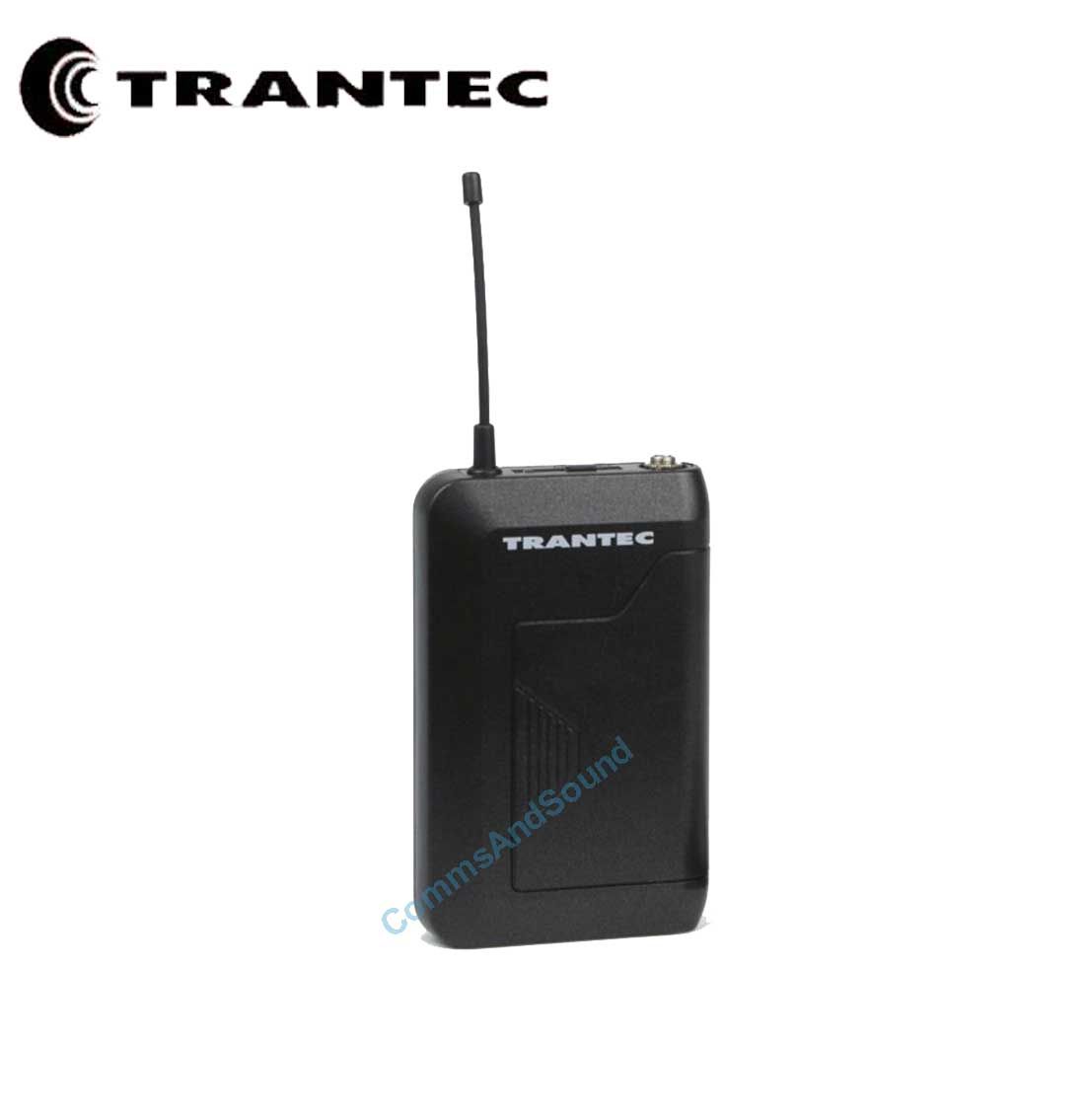

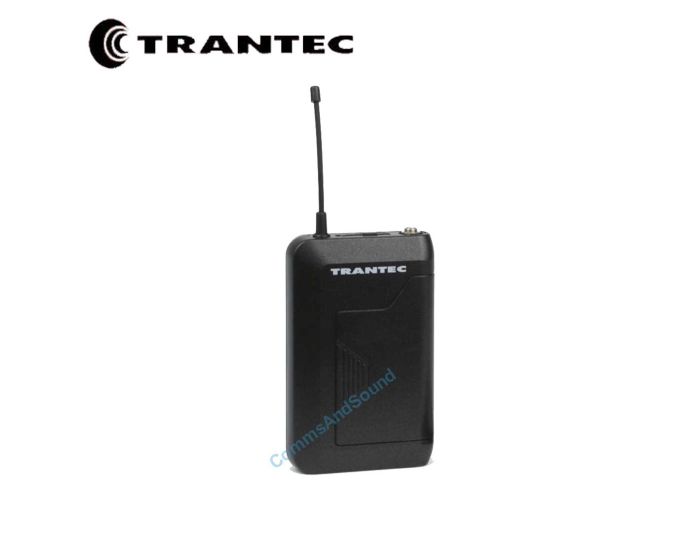

Belt Pack Transmitter Specifications

  • RF Carrier Power 10mW
  • Audio Frequency Response 50 Hz – 1.5kHz
  • Audio Input Level -6 dBV (maximum), mic gain 0dB
  • Battery Life Approx. 10 hours
  • Power Supply 1 AA size alkaline battery, 1.5V
  • Finish Resin, coating
  • Dimensions 62(W) x 100(H) x 25(D)mm (With clip)
  • Weight 85g with battery
More Information
BrandTrantec
Manfacturer CodeS4.04-L-EB-GD5 S4.10
SeriesS4.10
