Trantec S5.5RX Ch38 Receiver Excluding PSU and AnT

More Views

Trantec S5.5RX Ch38 Receiver Excluding PSU and AnT
Excl. Vat: £306.42 Incl. Vat: £367.70

Availability: In stock

Trantec S5.5RX Ch38 Receiver Excluding PSU and AnT Channel 38

The S5.5 from Trantec, one of the latest multi channel UHF products, is the big brother of the successful S5.3 system; it has 35MHz of bandwidth that will enable you to run up to 24 channels simultaneously at a price you will find hard to match.

Description

Details

Trantec S5.5-RX-G1W Ch38 Receiver Excluding PSU and AnT Channel 38

The S5.5 from Trantec, one of the latest multi channel UHF products, is the big brother of the successful S5.3 system; it has 35MHz of bandwidth that will enable you to run up to 24 channels simultaneously at a price you will find hard to match.

Product overview: High quality, true-diversity operation
Up to 24 Simultaneous Channels
Frequency scan facility
USB based computer monitoring
Integral triple tone grip/noise and signal strength mute circuit
Simple programming of transmitter with in-built Infra-red
Clear and intuitive LCD displays on both transmitters and receivers
Single AA operation of transmitters with battery life of over 10 hours
Credit card size beltpack transmitters
Professional metal enclosures for both transmitters and receiver

Technical Specification S5.5 System Specification
RF Frequency range: 692-722MHz--Band A1
722-752MHz--Band B1
794-830MHz--Band C1
830-865MHz--Band D3
Other frequency bands available on request
AF Frequency response: 50Hz - 20KHz
Dynamic Range: >110dBA
Fully meets the requirements of ETSI 300-422 and FCC Pt74.

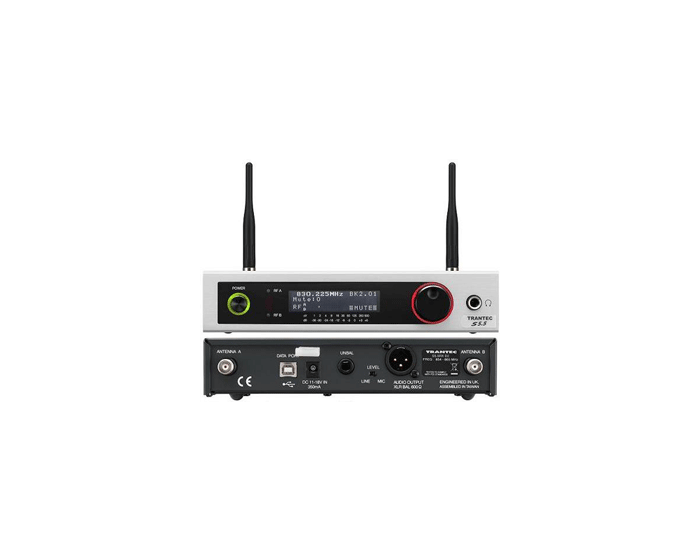

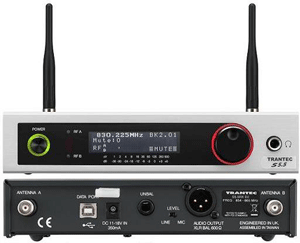

S5.5RX Receiver Fully Synthesised UHF dual conversion Receiver with features including. Graphic LCD, display jog wheel, IR data link and headphone monitor.
Type: Dual Diversity featuring PLL Dual conversion receivers
IF Freq: 1st IF 55.875MHz, 2nd IF 10.7MHz
Sensitivity: <1 microvolt/12dB SINAD
1st Image: >7dB
RSSI range: 10 steps 30dB range
Antenna Inputs: TNC 50 Ohm
AF switches: Low Cut - High Boost - Phase Reversal
Output Level: XLR Line +15dBm max. XLR Mic -25dBm max.
Unbal 1/4" jack socket +9dBm max
Antenna Phantom: 9V @ 60mA short circuit protected on each RF port
Bank Specification: 10 Banks x 24 Channels
Infra-Red Link: Range 15cm max
Computer Interface(USB): Monitoring of RF, AF and Transmitter Battery status
Full frequency management
Rear Panel connections: RF input,
AF XLR and 1/4" Jack output,
PC USB port, DC jack.
Power Consumption: 300mA @ 12Vdc nominal
Enclosure type: 19" 1U 1/2 width Rack
Additional Information

Additional Information

SKU Trantec S5.5-RX-G1W
Barcode No
Manufacturer Trantec
Manfacturer Code S5.5-RX-G1W
Series S5.5
