Adastra Ml622 6 XLR Mic, 2 Aux 1u Rack Mixer

Adastra Ml622 - Ml622 6 Mic + 2 Aux Rack Mixer 1u

Rack-mountable 1U mixer with 6 mic/line inputs and 2 auxiliary inputs. Each mic/line channel has switchable phantom power and input level. Output connections are stereo XLR, mono jack or REC output on RCA with master bass and treble tone controls. Designed as a master or expansion mixer for installed sound systems and conferences.

Features

• 24Vdc power option
• 6 switchable mic or line inputs
• 2 stereo aux inputs
• Individually switchable phantom power

Technical Specifications

• Power supply : 100-240Vac, 50/60Hz (IEC) or 24Vdc (terminals)
• Fuse : T1AL 250V (mains) or F500mA (24Vdc)
• Inputs : mic/line : 6 x balanced XLR
• Inputs : aux : 2 x L+R RCA

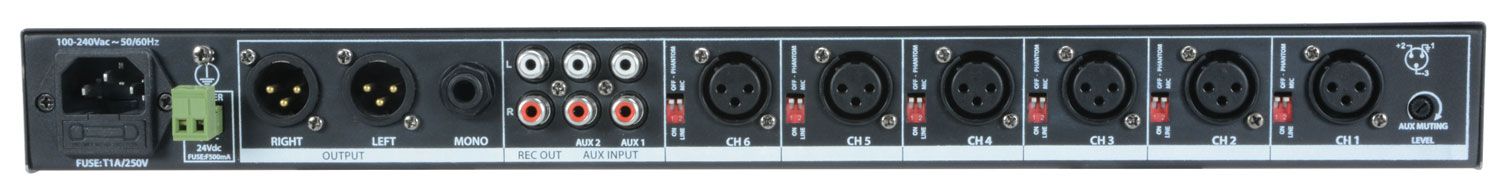

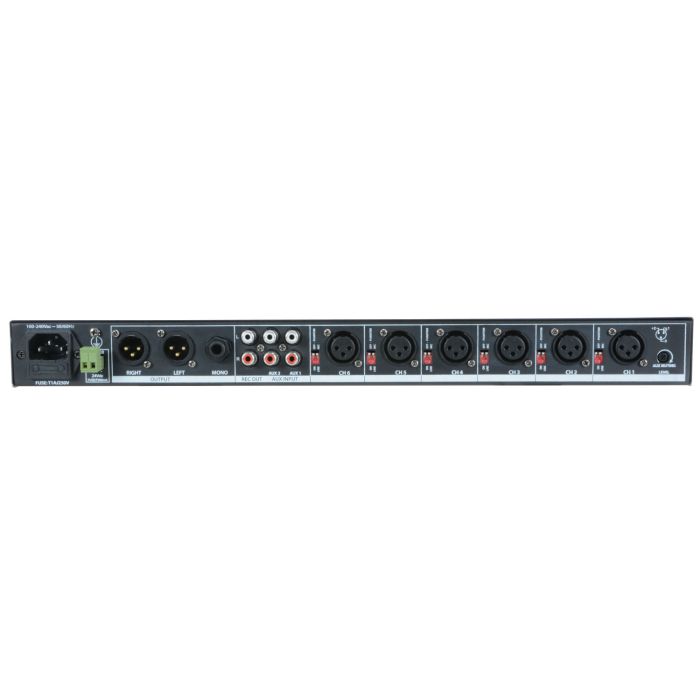

• Outputs : L+R XLR, mono 6.3mm jack, L+R RCA (REC)
• Controls : 6 x Mic/Line level, 2 x Aux level, Treble, Bass, Master
• Input impedance : 3.3k Ohms (mic/line), 10k Ohms (aux)
• Frequency response : mic : 20Hz - 18kHz
• Frequency response : line : 14Hz - 20kHz
• Frequency response : aux : 10Hz - 23kHz
• Input sensitivity : mic : -45dBV
• Input sensitivity : aux/line : -10dBV
• Signal to noise ratio : mic : 55dB
• Signal to noise ratio : aux/line : 60dB
• THD : 0.05%
• Dimensions : 482 x 130 x 44mm
• Weight : 1.43kg
• Phantom power : +20Vdc (switchable)
