Chord Nu20-h Nu20 Dual Uhf Handheld Microphone System
£83.54
In stock
Only 75 left
SKU
171.924UK
NU20 Dual UHF Handheld Microphone System 171.924UK by chord
Chord Nu20-h - Nu20 Dual Uhf Handheld Microphone System
Dual wireless microphone system with UHF receiver and 2 handheld or beltpack transmitters. The receiver unit is compatible with standard 19" racks using the included rack ears and front mounting antenna accessories.
Features
- Digital signal path for clean audio output
- Licence free operation in UK & EU
- Rack-mounting accessories included

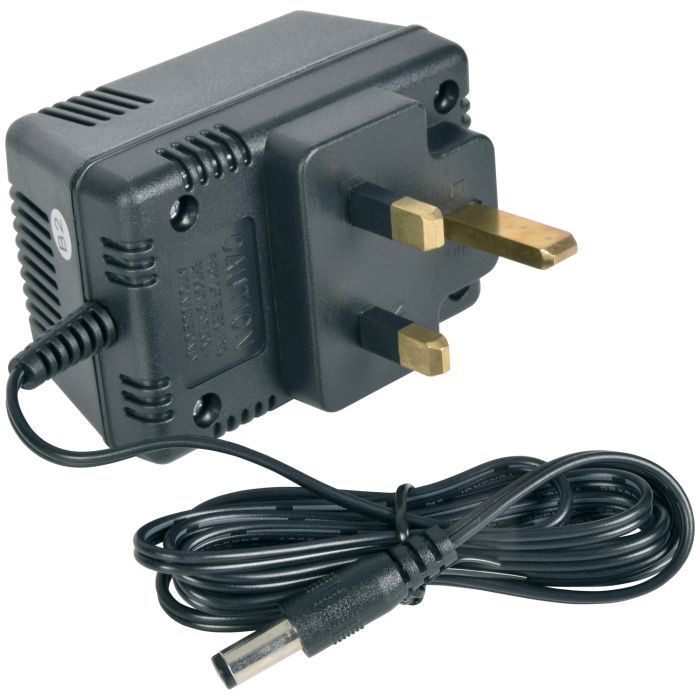

- Supplied with mains adaptor and 4 x AA batteries
Technical Specifications
- Power supply : 14Vdc 350mA (adaptor included)
- Dimensions : receiver : 409 x 190 x 44mm
- Weight : receiver : 1.37kg
- Batteries : 4 x AA (2 per transmitter)
- Carrier frequencies : 863.8MHz + 864.8MHz
- S/N ratio : >80dB
- THD : <0.5% @ 1kHz
- Frequency response : +/-3dB : 50Hz-18KHz
- Wireless range : Up to 60m
- Output impedance : 2.2k Ohms
- Output level : 400mV (balanced), 200mV (unbalanced)
- Dimensions : handheld transmitter : 243 x 48mmDia
- Dimensions : beltpack transmitter : N/A
- Weight : beltpack transmitter : N/A
- Weight : handheld transmitter : 238g (no battery)
Brand | Chord |
---|---|
Barcode | 5015972212806 |
Manfacturer Code | NU20-H |
