Mercury Eco Rg6 Foamed Pe Coaxial Cable With Aluminum Braid - 100m Brown

Mercury - Eco Rg6 Foamed Pe Coaxial Cable With Aluminum Braid - 100m Brown

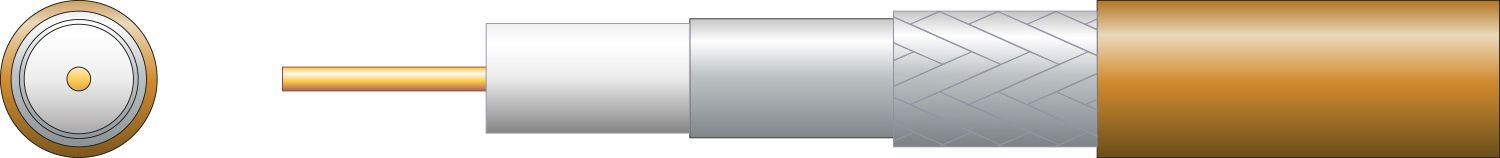

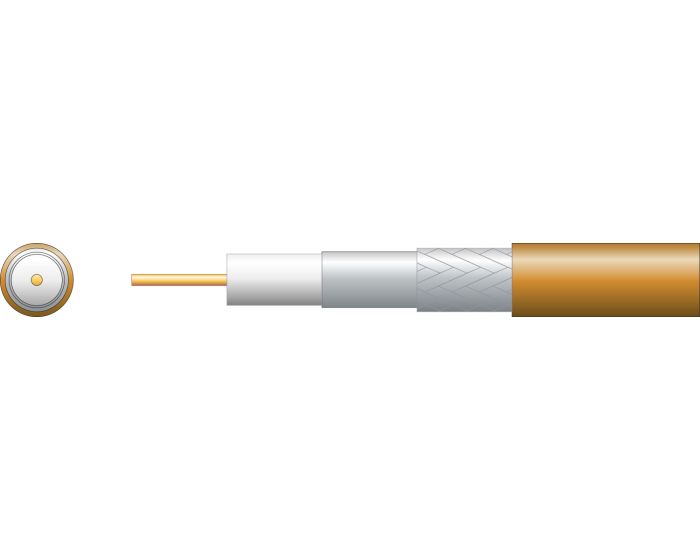

75 Ohms RG6 coaxial cable constructed of solid copper clad steel conductor, foam filled polyethylene dielectric, aluminium foil screen, aluminium braid and PVC sheath. The overall screen and braid significantly reduce noise penetration to the conductor making it Can be used for digital, satellite and cable TV signal transmission.

Features

• Solid CCS conductor
• Foam filled PE dielectric
• Binded aluminium screen
• Aluminium braid
• Supplied in 100m reel with metric cut markers

Technical Specifications

• Conductor diameter : 1mmDia
• CSA : 0.79mm2
• Dielectric : 4.6mmDia foam PE
• Screen : Aluminium / PET foil
• Braid : 48 x 0.12mmDia
• Cable : diameter : 6.6mmDia
• Impedance : 75 Ohms
• Capacitance : 54pF/m
• Velocity factor : 83%
• Length : 100m
• Weight : 3.8kg
• Return loss 5-400MHz : 24dB min./100m
• Return loss 450-1000MHz : 20dB min./100m
• Return loss 1000-2150MHz : 16dB min./100m
• Attenuation @ 5MHz : 2.8dB max./100m
• Attenuation @ 50MHz : 5.1dB max./100m
• Attenuation @ 100MHz : 6.9dB max./100m
• Attenuation @ 200MHz : 10.1dB max./100m
• Attenuation @ 400MHz : 14.9dB max./100m
• Attenuation @ 860MHz : 20.1dB max./100m
• Attenuation @ 1000MHz : 22.2dB max./100m
• Attenuation @ 1750MHz : 29.6dB max./100m
• Attenuation @ 2150MHz : 33.3dB max./100m
• Conductor material : Solid CCS
• Braid material : Aluminium
• Colour : Brown
