Mercury Twin Sat/cctv Foamed Pe Coaxial Cable With Cu Braid - 100m Black
£64.61
In stock
Only 75 left
SKU
808.163UK

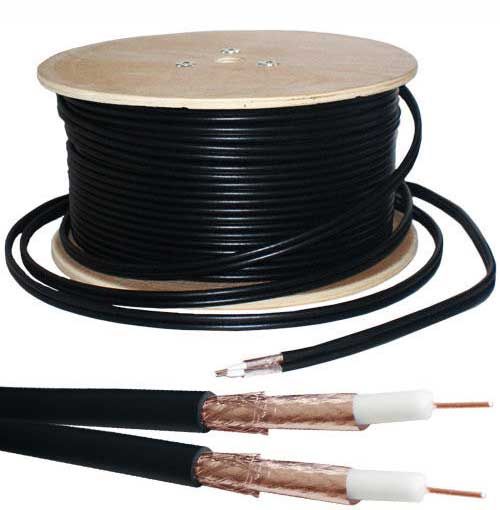

Twin SAT/CCTV Foamed PE Coaxial Cable with Cu Braid - 100m Black 808.163UK by mercury
Mercury - Twin Sat/cctv Foamed Pe Coaxial Cable With Cu Braid - 100m Black
Twin 75 Ohms RG59 coaxial cable constructed of solid oxygen free copper conductor, foam filled polyethylene dielectric, copper foil screen, oxygen free copper braid and PVC sheath. The overall screen and braid significantly reduce noise penetration to the conductor making it Can be used for satellite dish installation with dual or quad LNB or for CCTV signal transmission.
Features
- Solid OFC conductor
- Foam filled PE dielectric
- Copper foil screen
- OFC braid
- Supplied in 100m reel with metric cut markers
Technical Specifications
- Conductor diameter : 2 x 0.65mmDia
- CSA : 2 x 0.33mm2
- Dielectric : 3mmDia foam PE
- Screen : Copper foil
- Braid : 2 x 48/0.14mmDia
- Cable : diameter : 2 x 5mmDia
- Impedance : 75 Ohms
- Capacitance : 67pF/m
- Length : 100m
- Colour : Black
- Velocity factor : 83%
- Weight : 5.7kg
- Return loss 5-400MHz : 30dB min./100m
- Return loss 450-1000MHz : 22dB min./100m
- Return loss 1000-2150MHz : 18dB min./100m
- Attenuation @ 50MHz : 6.5dB max./100m
- Attenuation @ 100MHz : 8.9dB max./100m
- Attenuation @ 200MHz : 12.3dB max./100m
- Attenuation @ 400MHz : 17.6dB max./100m
- Attenuation @ 860MHz : 24.7dB max./100m
- Attenuation @ 1000MHz : 26.9dB max./100m
- Attenuation @ 1750MHz : 35.7dB max./100m
- Attenuation @ 2150MHz : 42.2dB max./100m
- Conductor material : Solid OFC
- Braid material : OFC
Brand | Mercury |
---|---|
Barcode | 5015972166970 |
Manfacturer Code | 808.163UK |
