Mercury Cat6 U/utp Ldpe Gel Filled Network Cable 305m Black
£187.13
In stock
Only 100 left
SKU
808.012UK
Cat6 U/UTP LDPE Gel Filled Network Cable 305m Black 808.012UK by mercury
Mercury - Cat6 U/utp Ldpe Gel Filled Network Cable 305m Black

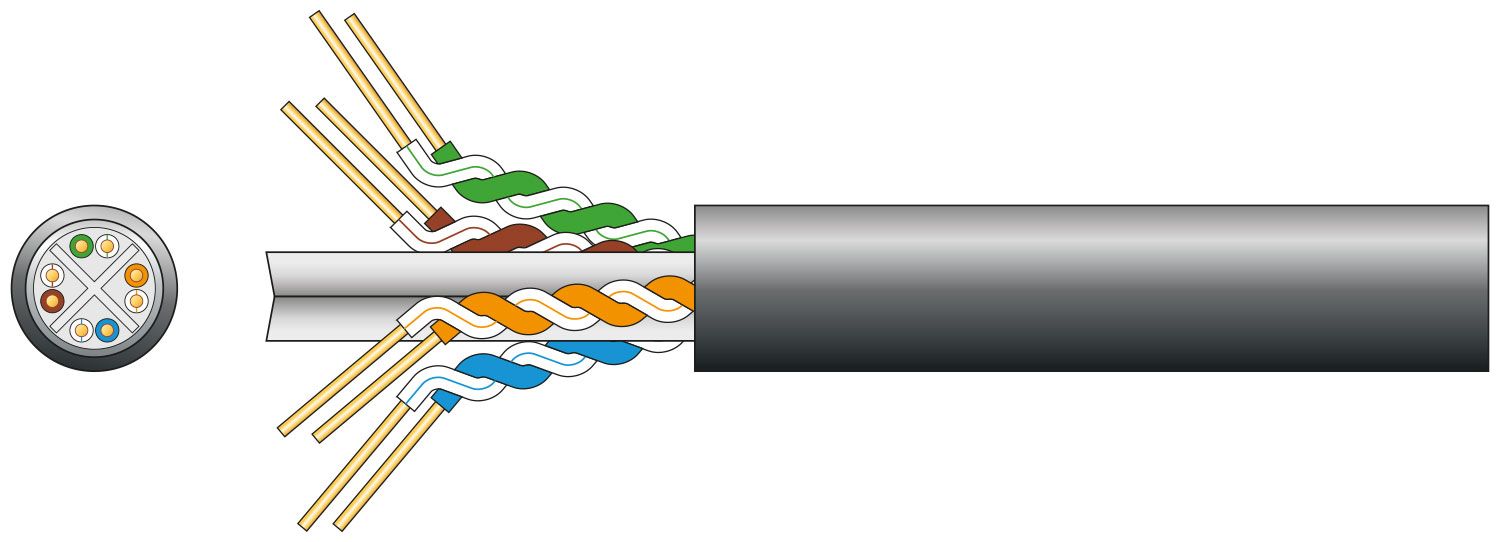

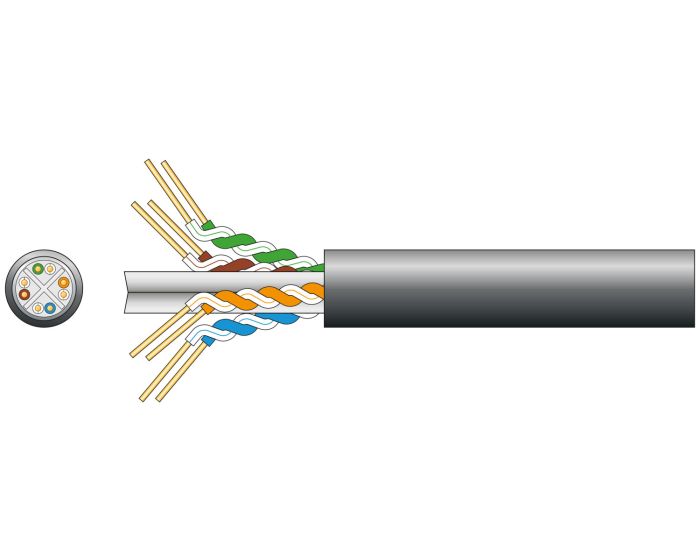

Cat6 oxygen free copper twisted pair data cable with LDPE sheath and gel filled structure. Supplied on a wooden drum reel and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications.
Features
- LDPE sheath with UV resistant properties and gel filled inner structure makes this cable ideal for outdoor installation
- AWG 23 oxygen free solid copper conductor
- Passes Cat6 fluke test 100m at 250MHz
- Complies to TIA/EIA-568 Cat6 standard
- Supplied on a sturdy wooden drum reel
Technical Specifications
- Conductor : Solid OFC
- Strands : 8 x 1/0.57mmDia +/-2%
- Conductor CSA : 8 x 0.255mm2
- Cable : diameter : 7.1mmDia
- Insulation : HDPE 0.28mm thickness
- Sheath : LDPE 0.6mm thickness
- Capacitance : 6.6nF/100m
- DC resistance @ 20DegC : <9.38 Ohms/100m
- Impedance (1 to 250MHz) : 100+/-15 Ohms
- Return loss : >21dB @100m
- Attenuation : <31.1dB @100m
- NEXT : >35.83dB
- PSNEXT : >32.7dB
- ELFEXT : >16.2dB
- PSELFEXT : >13.2dB
- Phase delay : <521ns
- Cable colour : Black
- Length : 305m
- Weight : 16kg
Brand | Mercury |
---|---|
Barcode | 5015972177037 |
Manfacturer Code | 808.012UK |
