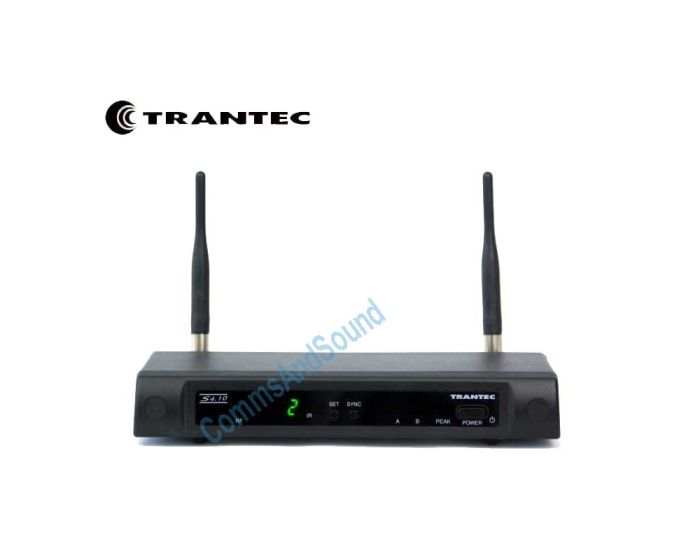

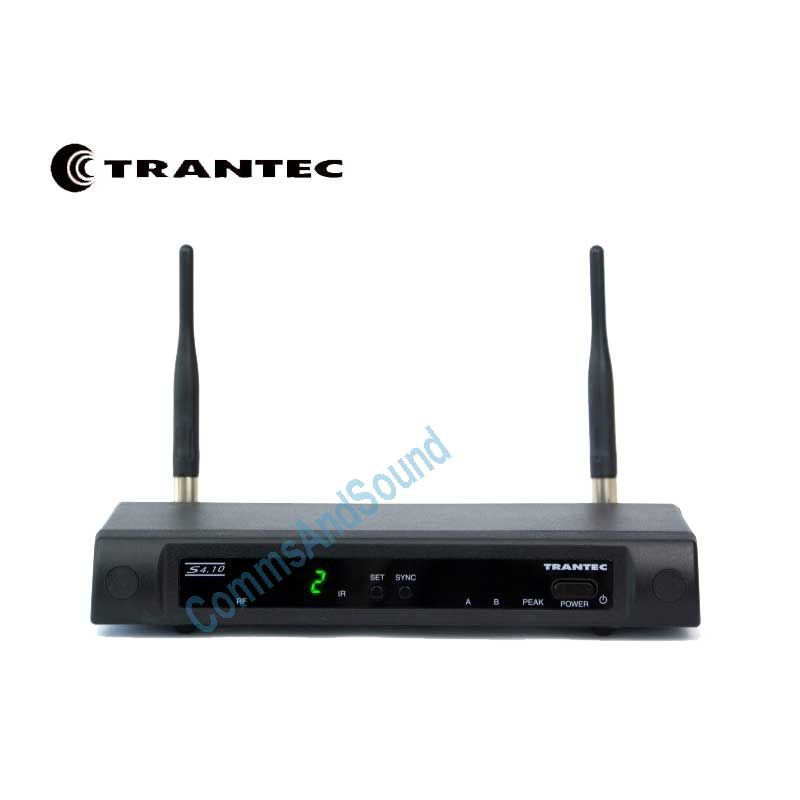

Trantec S4.10 Receiver Only S4.10-RXA-EB-GD4 ch70

Trantec S4.10 Receiver Only S4.10-RXA-EB-GD4 ch70, No PSU or Aerials

Trantec S4.10 receiver is the next generation of 10-channel ch70 UHF wireless, replacing the Trantec S4.16 range. S4.10 offers the same quality and functionality as its predecessor. Lapel microphones connect to body pack transmitters. The body pack transmitter, and desktop receiver use infrared signals to syncronise.

The S4.10 body pack transmitters can be used on any of the pre-programmed frequencies.

• 16 selectable frequencies available
• Up to 10 simultaneous channels
• Fully synthesised PLL quartz tuning technology
• Receiver LED show AF peak level, RF level & diversity channel A or B
• Diversity operation with detachable antenna
• Professional metal enclosure
• 19” rack mount option for one or two receivers

Specifications

• Diversity Recpetion Antenna Diversity
• Sensitivity 10uV at 45dBA, S/N
• Squelch Tone SQ, Carrier SQ, Noise SQ
• Audio Frequency Response 50Hz - 1.5kHz
• Audio Output Level (Max.) Balanced (XLR socket): -20dBu Unbalanced(1/4" jack socket): 10dBu
• Power Supply 12 VDC 500mA
• Dimensions 215(W) x 39(H) x 102(D)mm (excluding antenna and BNC)
• Weight 480g
